Structural · S-ZP984

Typical Steel Studs at Corner

Materials

Steel Timber / Wood

Elements

Walls Anchors / Embeds

Connections

Base Plate / Anchorage

About this detail

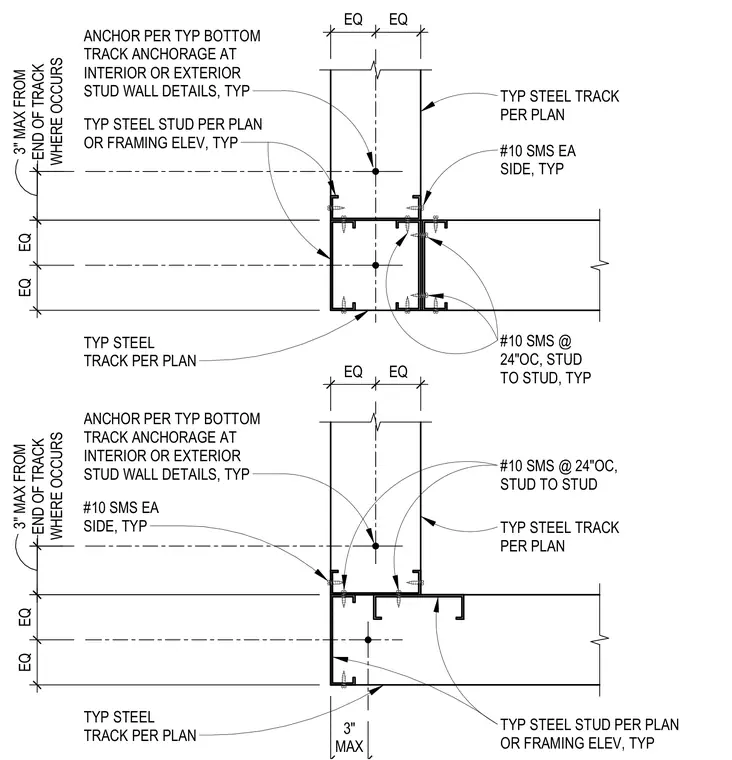

Cold-formed steel stud corner framing consists of typical steel tracks sized per plan intersected by typical steel studs. The corner studs are fastened together with number ten sheet metal screws on each side and spaced at twenty-four inches on center from stud to stud. Steel tracks are secured with anchors per typical bottom track anchorage details at interior or exterior stud wall conditions, with a maximum three-inch spacing from the end of the track where applicable.
