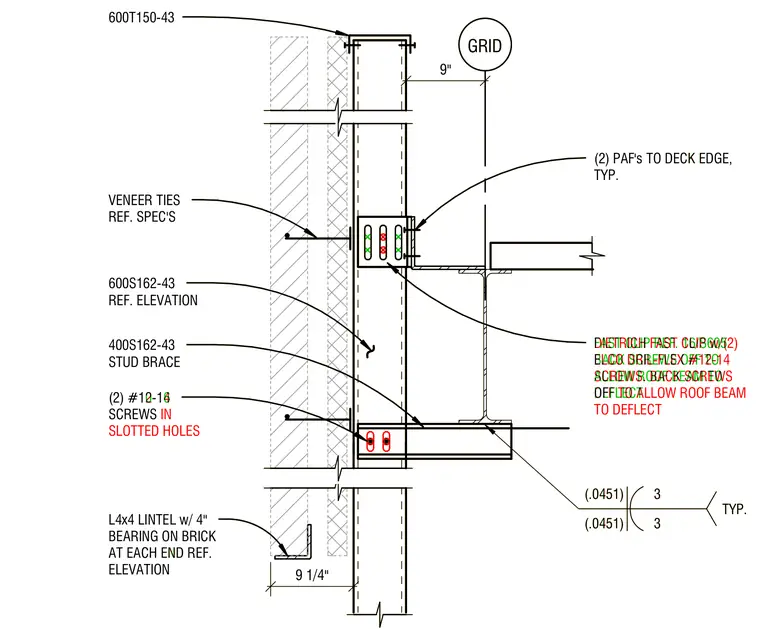

A brick veneer support assembly anchored to cold-formed steel framing at a roof deflection connection. An L4x4 steel angle lintel provides four inches of bearing on the brick masonry at each end. The 600S162-43 and 600T150-43 cold-formed steel studs tie back to the structural framing using Dietrich Fast Clips secured with two Elco Dril-Flex number 12-14 screws in slotted holes, backed off to allow the roof beam to deflect nine inches. Two powder-actuated fasteners attach the clip to the deck edge. Additional bracing is provided by 400S162-43 stud braces and veneer ties spaced per specifications.
GRID VENEER TIES REF. SPEC'S L4x4 LINTEL w/ 4" BEARING ON BRICK AT EACH END REF. ELEVATION 9 1/4" 600T150-43 600S162-43 REF. ELEVATION (.0451) 3 (.0451) 3 TYP. (2) #12-14 SCREWS IN SLOTTED HOLES DIETRICH FAST CLIP w/(2) ELCO DRIL-FLEX #12-14 SCREWS. BACK SCREWS OFF TO ALLOW ROOF BEAM TO DEFLECT 9" (2) PAF's TO DECK EDGE, TYP. 400S162-43 STUD BRACE GRID VENEER TIES REF. SPEC'S L4x4 LINTEL w/ 4" BEARING ON BRICK AT EACH END REF. ELEVATION 9 1/4" 600T150-43 600S162-43 REF. ELEVATION (.0451) 3 (.0451) 3 TYP. (2) #10-16 SCREWS FAST CLIP REF. 16/S605 BACK SCREWS OFF TO ALLOW ROOF BEAM TO DEFLECT 9" (2) PAF's TO DECK EDGE, TYP. 400S162-43 STUD BRACE
