Structural · S-ZP3MW

Gravity Col. Base Plate

Materials

Steel

Elements

Columns Anchors / Embeds Connections / Plates

Connections

Base Plate / Anchorage HSS Connection Bolted Connection

About this detail

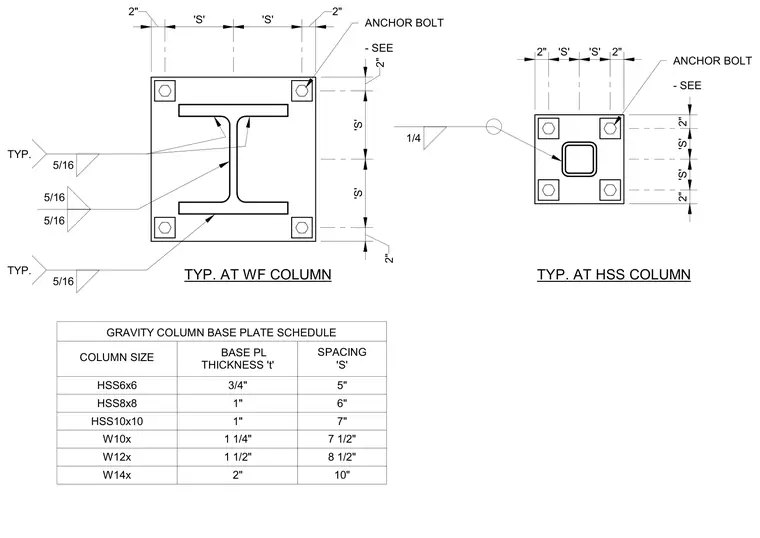

Gravity column base plates are welded to wide-flange and hollow structural steel columns using specified fillet welds and secured with four anchor bolts. For wide-flange columns such as W10x, W12x, and W14x, plate thicknesses range from 1-1/4 inches to 2 inches with bolt spacings from 7-1/2 inches to 10 inches, connected with five-sixteenths inch typical fillet welds. Hollow structural section columns like HSS6x6, HSS8x8, and HSS10x10 utilize plate thicknesses from three-quarters of an inch to 1 inch with bolt spacings from 5 inches to 7 inches, connected with quarter-inch typical fillet welds. Anchor bolt locations are dimensioned with two-inch edge distances from the plate edges.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
