Structural · S-ZNVY2

Braced Frame Moment Connection Column

Materials

Steel Metal (misc.)

Elements

Columns Beams Bracing Connections / Plates

Connections

Moment Connection Braced Frame Connection Gusset Plate Bracing Connection Welded Connection Bolted Connection

About this detail

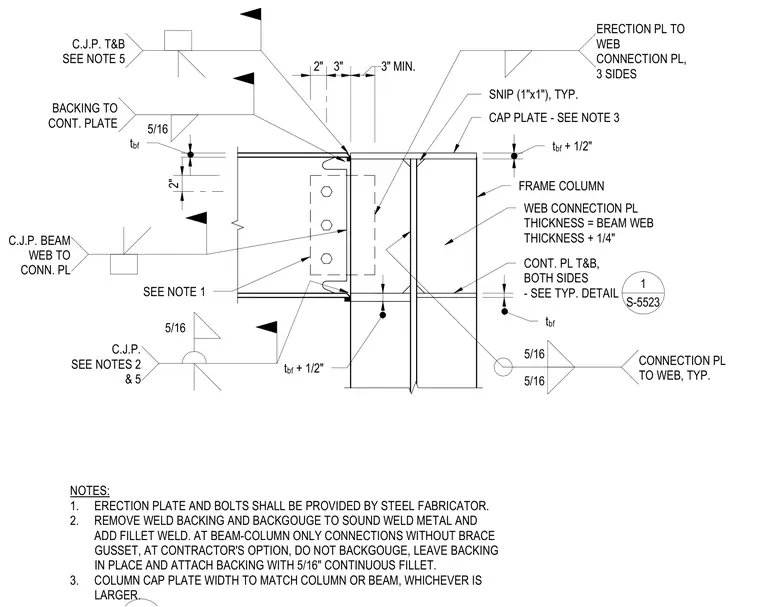

A heavy steel frame moment connection joins a wide-flange beam to a structural steel column. The top and bottom beam flanges attach to continuous plates via complete joint penetration groove welds, with weld backing left in place and attached using five-sixteenths inch continuous fillet welds per contractor options. A web connection plate with a thickness equal to the beam web thickness plus one-quarter inch is bolted to the beam web using three bolts, while the erection plate to web connection is welded on three sides. A column cap plate matches the width of the column or beam, whichever is larger, featuring one-inch by one-inch snips. Additional notes specify that erection plates and bolts are provided by the steel fabricator, and weld backing must be removed and backgouged to sound weld metal where required.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
