Metal decking parallels a steel beam with an overhang of one foot one inch or less, finished with a continuous three-sixteenths-inch bent closure plate that extends and laps two inches onto the beam flange. A three-sixteenths-inch fillet weld at twelve inches on center secures the closure plate to the beam. An intersecting steel beam frames into the main steel beam with a bolted connection. At interior deck edges for duct shaft openings, a ten gauge bent closure plate may be substituted for the three-sixteenths-inch closure plate.

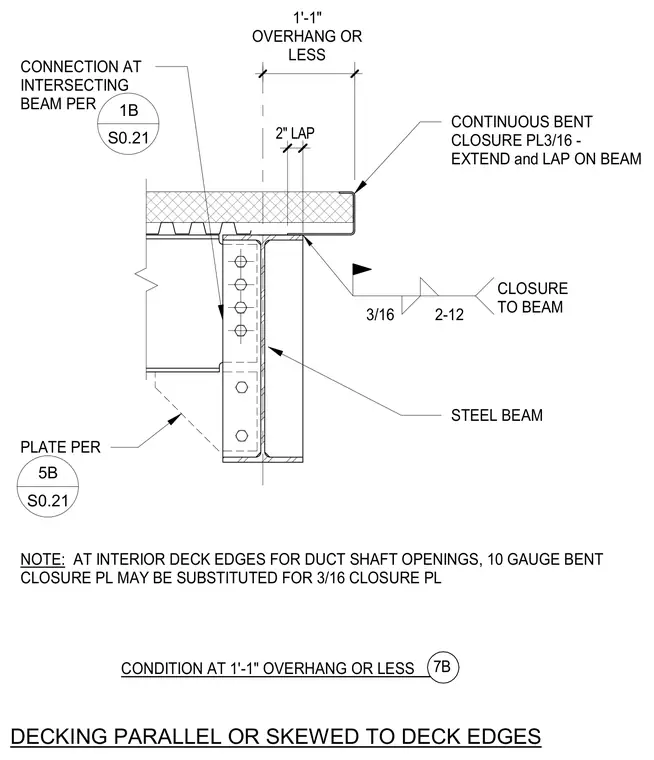

1B S0.21 CONNECTION AT INTERSECTING BEAM PER STEEL BEAM 1'-1" OVERHANG OR LESS CONTINUOUS BENT CLOSURE PL3/16 - EXTEND and LAP ON BEAM CONDITION AT 1'-1" OVERHANG OR LESS__ 7B DECKING PARALLEL OR SKEWED TO DECK EDGES CLOSURE TO BEAM 3/16 2-12 NOTE: AT INTERIOR DECK EDGES FOR DUCT SHAFT OPENINGS, 10 GAUGE BENT CLOSURE PL MAY BE SUBSTITUTED FOR 3/16 CLOSURE PL 2" LAP PLATE PER 5B S0.21
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
