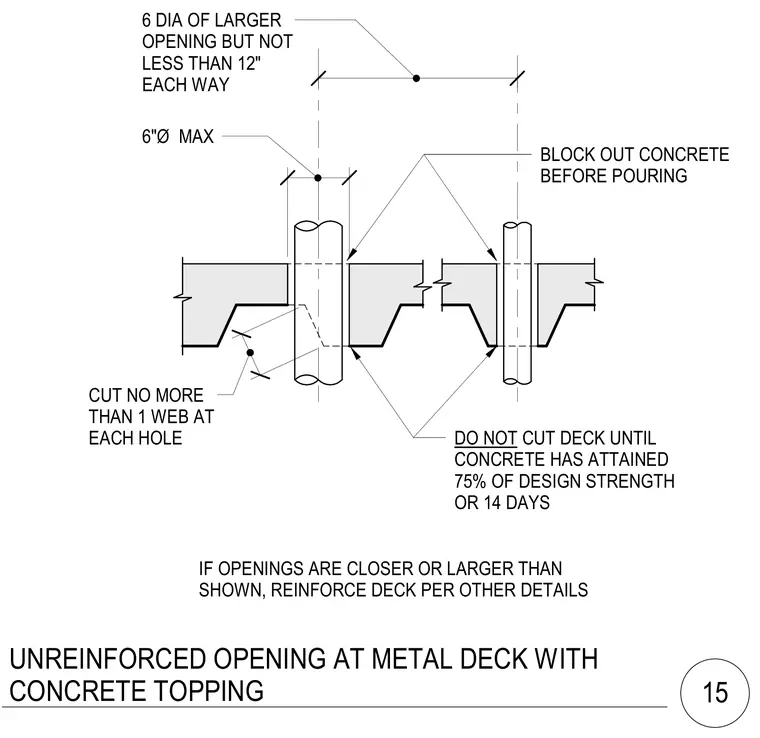

Unreinforced circular openings up to six inches in diameter are permitted through composite metal decks with concrete topping, subject to strict spacing and structural limitations. Concrete must be blocked out prior to pouring around penetrations. The metal deck must remain intact until the concrete achieves seventy-five percent of its design strength or fourteen days have elapsed. No more than one deck web may be cut at each hole location. Openings must maintain a clear distance of at least six times the diameter of the larger opening, and never less than twelve inches each way. Closely spaced or larger penetrations require additional deck reinforcement per separate structural details.
BLOCK OUT CONCRETE BEFORE POURING DO NOT CUT DECK UNTIL CONCRETE HAS ATTAINED 75% OF DESIGN STRENGTH OR 14 DAYS CUT NO MORE THAN 1 WEB AT EACH HOLE IF OPENINGS ARE CLOSER OR LARGER THAN SHOWN, REINFORCE DECK PER OTHER DETAILS 6 DIA OF LARGER OPENING BUT NOT LESS THAN 12" EACH WAY 6"Ø MAX UNREINFORCED OPENING AT METAL DECK WITH CONCRETE TOPPING 15
