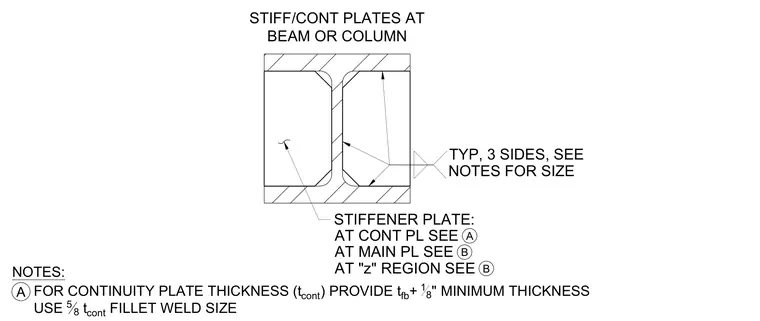

Steel stiffener and continuity plates are welded between the flanges of a wide-flange beam or column. The continuity plate thickness is sized to the flange thickness plus one-eighth inch minimum. Fillet welds sized to five-eighths of the continuity plate thickness attach the plates on three sides. Stiffener plate connections at the continuity plate, main plate, and web z-region follow specific engineering notes.
FOR CONTINUITY PLATE THICKNESS (t cont ) PROVIDE t fb + 18 " MINIMUM THICKNESS TYP, 3 SIDES, SEE STIFFENER PLATE: A AT CONT PL SEE AT MAIN PL SEE AT "z" REGION SEE A B B NOTES FOR SIZE NOTES: USE 5 8 t cont FILLET WELD SIZE STIFF/CONT PLATES AT BEAM OR COLUMN
