Concrete Tilt-Up Panel Opening Reinforcing Details and Schedule

Materials

Concrete Reinforced Concrete

Elements

Columns Beams Walls Arches Reinforcing Roof / Floor Openings

Connections

Rebar Splice / Development

About this detail

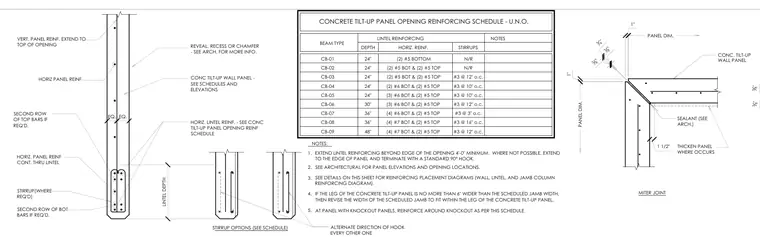

Concrete tilt-up wall panels feature continuous horizontal and vertical panel reinforcement extending to the top of openings, with lintels reinforced according to the scheduled beam type using bottom bars, top bars, and stirrups spaced at specified intervals. Lintel reinforcing extends four feet minimum beyond the edge of the opening or terminates with a standard ninety-degree hook at the panel edge where space is limited. Stirrups alternate direction of the hook every other one. Miter joint corners in the concrete tilt-up wall panel incorporate sealant as specified by the architectural drawings and thickened panel sections where required.
