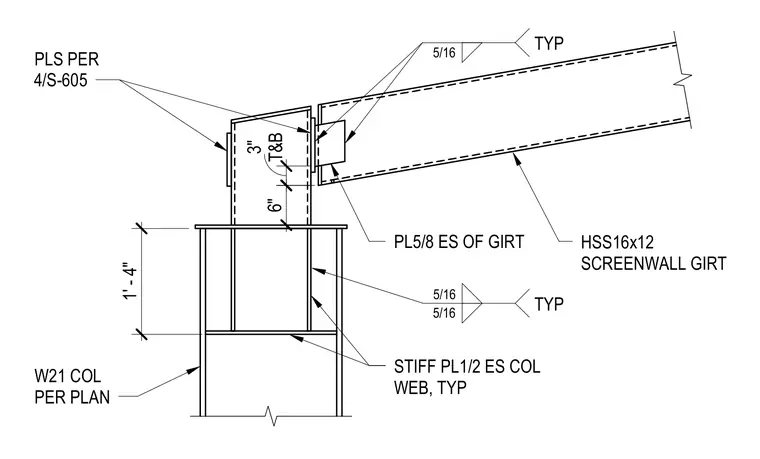

An HSS16x12 screenwall girt connects to a W21 structural steel column sized per plan. A 5/8-inch plate is welded to one side of the girt with 5/16-inch fillet welds. One-half-inch stiffener plates are welded to the column web on each side using typical 5/16-inch fillet welds. Additional plates sized per plan are installed at the top and bottom with dimensions of three inches and six inches.
TYP 5/16 PL5/8 ES OF GIRT W21 COL PER PLAN HSS16x12 SCREENWALL GIRT 6" T&B 3" PLS PER 4/S-605 1' - 4" STIFF PL1/2 ES COL WEB, TYP TYP 5/16 5/16
