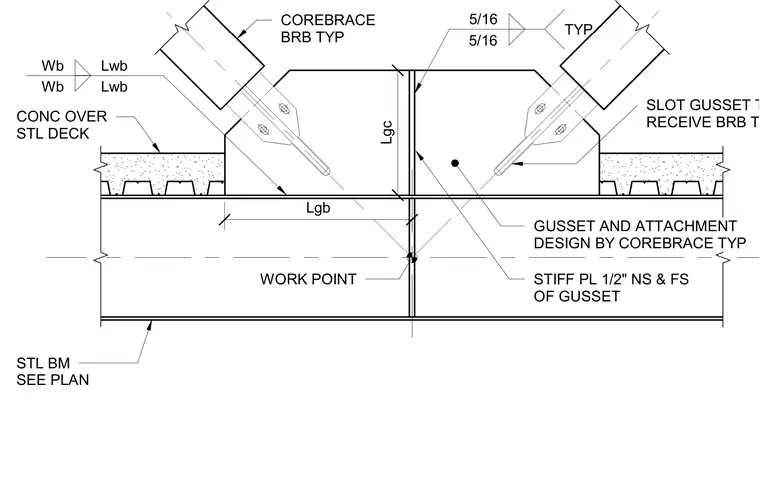

A buckling-restrained brace frames into a gusset plate attached to a steel floor beam supporting concrete over steel deck. The gusset plate is slotted to receive the buckling-restrained brace connection. Half-inch stiffener plates are welded to the near side and far side of the gusset with five-sixteenth-inch fillet welds. The gusset and attachment design is provided by the manufacturer. The supporting steel beam is sized per plan.
WORK POINT COREBRACE BRB TYP 5/16 5/16 TYP GUSSET AND ATTACHMENT DESIGN BY COREBRACE TYP SLOT GUSSET TO RECEIVE BRB TYP CONC OVER STL DECK STL BM SEE PLAN STIFF PL 1/2" NS & FS OF GUSSET Wb Lwb Wb Lwb Lgb Lgc
