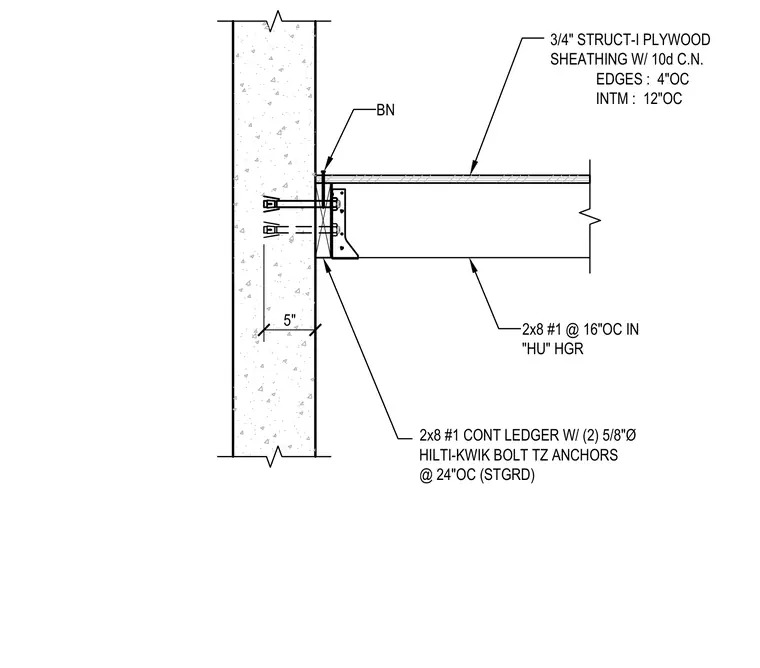

A continuous 2x8 number one wood ledger is anchored to a five-inch concrete wall using two five-eighths-inch diameter Hilti Kwik Bolt TZ anchors spaced at twenty-four inches on center staggered. A 2x8 number one wood framing member at sixteen inches on center connects into a joist hanger. Three-quarters-inch Structural-I plywood sheathing is fastened to the top with ten-penny common nails spaced at four inches on center at edges and twelve inches on center intermediate.
BN 3/4" STRUCT-I PLYWOOD SHEATHING W/ 10d C.N. EDGES : 4"OC INTM : 12"OC 2x8 #1 @ 16"OC IN "HU" HGR 5" 2x8 #1 CONT LEDGER W/ (2) 5/8"Ø HILTI-KWIK BOLT TZ ANCHORS @ 24"OC (STGRD)
