A wide flange column connects to a one-and-a-quarter-inch thick base plate, which rests over a one-and-a-half-inch flowable non-shrink grout pad. The column flanges are secured with three-eighths-inch fillet welds, left unwelded for a distance of one-half inch typical and between the 'k' regions. Two two-inch diameter air holes are provided in the base plate. Four one-and-one-sixteenth-inch diameter holes accommodate three-quarter-inch diameter by one-foot-six-inch ASTM F1554 Grade 36 anchor rods with double nuts and six-inch projection. ASTM F844 washers are installed both above and below the base plate.

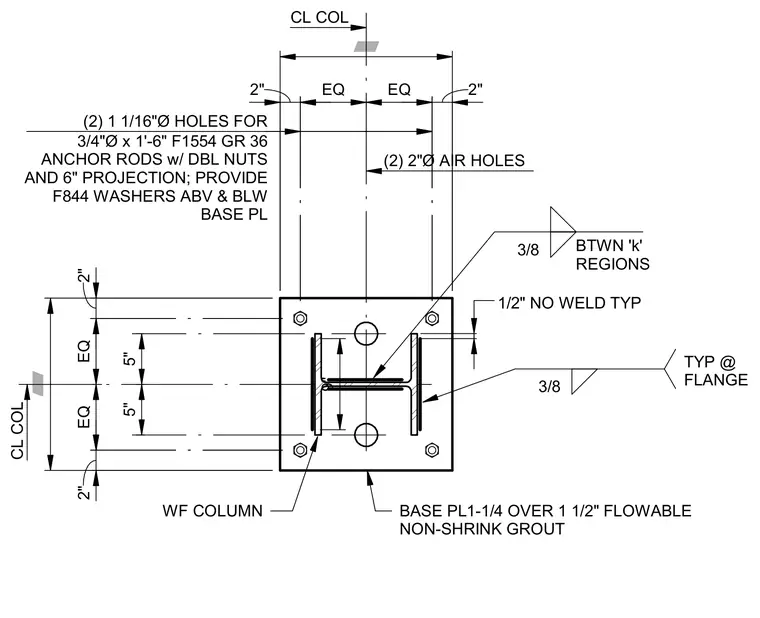

WF COLUMN BASE PL1-1/4 OVER 1 1/2" FLOWABLE NON-SHRINK GROUT 1/2" NO WELD TYP . 2" 2" EQ EQ . 2" 2" EQ EQ 5" 5" 9" BTWN 'k' REGIONS 3/8 3/8 TYP @ FLANGE CL COL (2) 2"Ø AIR HOLES CL COL (2) 1 1/16"Ø HOLES FOR 3/4"Ø x 1'-6" F1554 GR 36 ANCHOR RODS w/ DBL NUTS AND 6" PROJECTION; PROVIDE F844 WASHERS ABV & BLW BASE PL
