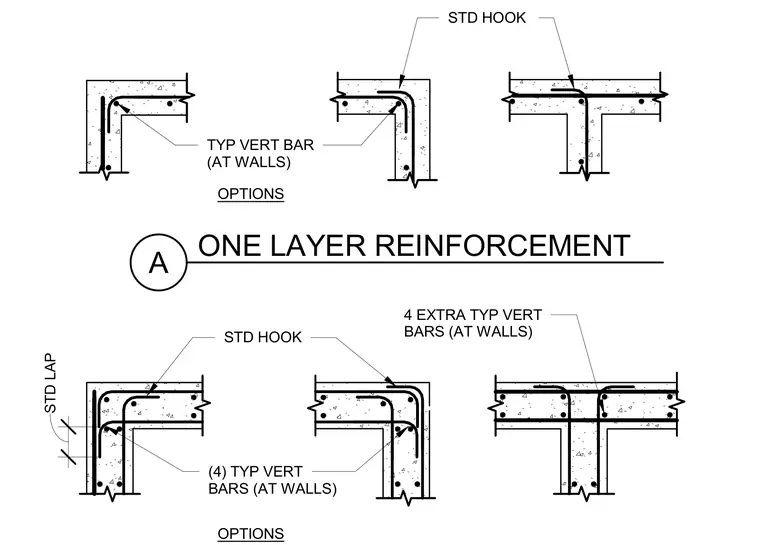

Reinforced concrete wall and footing intersections featuring single-layer rebar configurations with standard hooks and laps. Typical vertical bars at walls include options for standard hooks and four extra vertical reinforcing bars. Standard lap lengths and hook placements ensure proper anchorage and continuity at corner and tee wall intersections.
TYP VERT BAR (AT WALLS) OPTIONS STD HOOK (4) TYP VERT BARS (AT WALLS) OPTIONS STD HOOK 4 EXTRA TYP VERT BARS (AT WALLS) A ONE LAYER REINFORCEMENT STD LAP
