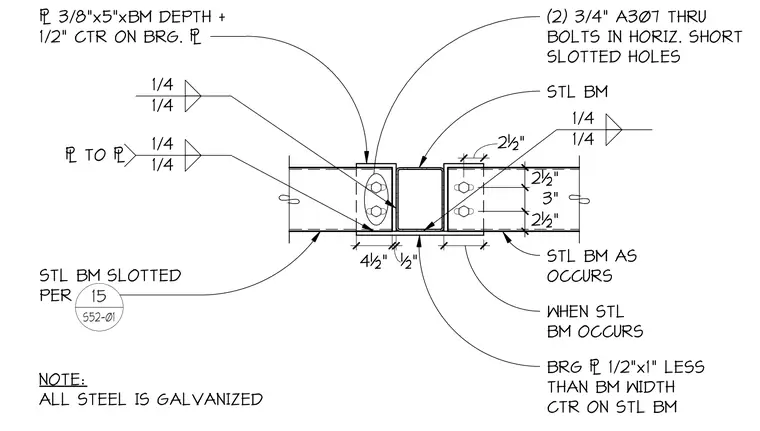

Two steel beams connect end-to-end via a bearing plate centered on the beam and secured with two three-quarter-inch A307 through-bolts in horizontal short slotted holes. A three-eighth-inch by five-inch plate matching the beam depth plus one-half inch spans the top and bottom flanges with fillet welds. A one-half-inch by one-inch bearing plate centered on the steel beam accommodates movement. All structural steel components are galvanized.
2½" 3" 2½" 2½" 4½" ½" STL BM (2) 3/4" A307 THRU BOLTS IN HORIZ. SHORT SLOTTED HOLES # 3/8"x5"xBM DEPTH + 1/2" CTR ON BRG. # STL BM AS OCCURS 1/4 1/4 5" WHEN STL BM OCCURS 1/4 1/4 1/4 1/4 # TO # STL BM SLOTTED PER BRG # 1/2"x1" LESS THAN BM WIDTH CTR ON STL BM NOTE: ALL STEEL IS GALVANIZED 15 S52-01
