Cold-formed steel wall studs bear directly on a minimum 43-mil bottom track with a minimum flange width of one and one-quarter inches. Stud ends must bear on the track web with a maximum gap of one-eighth inch at non-bearing walls. Each stud is fastened to the track with a number eight screw. The track is secured to the concrete slab or stem wall using powder-actuated fasteners spaced at a maximum of sixteen inches on center with a minimum embedment of one and one-half inches, positioned a minimum of three inches from the edge of the slab or stem wall. Load-bearing shims or grout are provided between the underside of the bottom track and the support below at stud or joist locations where a gap greater than one-quarter inch occurs.

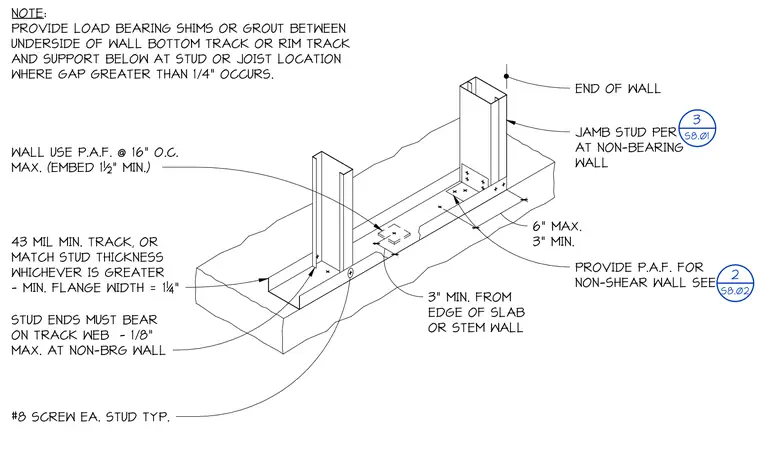

WALL USE P.A.F. @ 16" O.C. MAX. (EMBED 1½" MIN.) 43 MIL MIN. TRACK, OR MATCH STUD THICKNESS WHICHEVER IS GREATER - MIN. FLANGE WIDTH = 1¼" STUD ENDS MUST BEAR ON TRACK WEB - 1/8" MAX. AT NON-BRG WALL #8 SCREW EA. STUD TYP. END OF WALL JAMB STUD PER AT NON-BEARING WALL 6" MAX. 3" MIN. PROVIDE P.A.F. FOR NON-SHEAR WALL SEE 3" MIN. FROM EDGE OF SLAB OR STEM WALL NOTE: PROVIDE LOAD BEARING SHIMS OR GROUT BETWEEN UNDERSIDE OF WALL BOTTOM TRACK OR RIM TRACK AND SUPPORT BELOW AT STUD OR JOIST LOCATION WHERE GAP GREATER THAN 1/4" OCCURS. 3 S8.01 2 S8.02
