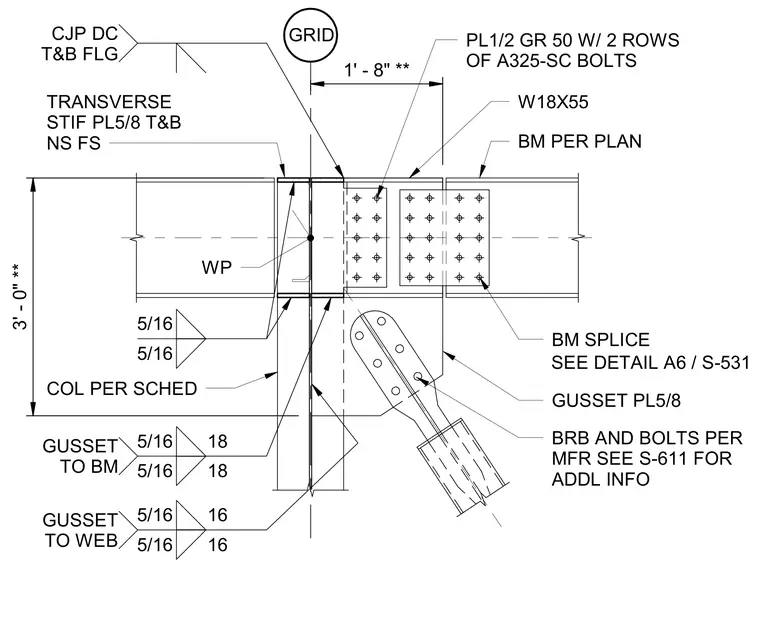

A buckling-restrained brace connection frames into a W18x55 beam and column per schedule. A five-eighths-inch thick gusset plate connects to the beam web and bottom flange with continuous fillet welds, and to the column centerline working point. Transverse five-eighths-inch stiffener plates are welded to the top and near-side and far-side flanges with complete joint penetration welds. A half-inch Grade 50 plate with two rows of A325 slip-critical bolts provides a beam splice connection. The buckling-restrained brace attaches to the gusset plate using manufacturer-specified bolts per sheet S-611.
GRID BM PER PLAN BM SPLICE BRB AND BOLTS PER MFR SEE S-611 FOR ADDL INFO GUSSET PL5/8 WP COL PER SCHED 1' - 8" ** 3' - 0" ** 5/16 18 5/16 18 GUSSET TO BM 5/16 16 5/16 16 GUSSET TO WEB SEE DETAIL A6 / S-531 W18X55 PL1/2 GR 50 W/ 2 ROWS OF A325-SC BOLTS CJP DC T&B FLG TRANSVERSE STIF PL5/8 T&B NS FS 5/16 5/16
