Hard Lid Gypsum Board Ceiling Junction at Stud Wall

Materials

Elements

Beams Walls Partitions Ceilings Insulation Anchors / Embeds

About this detail

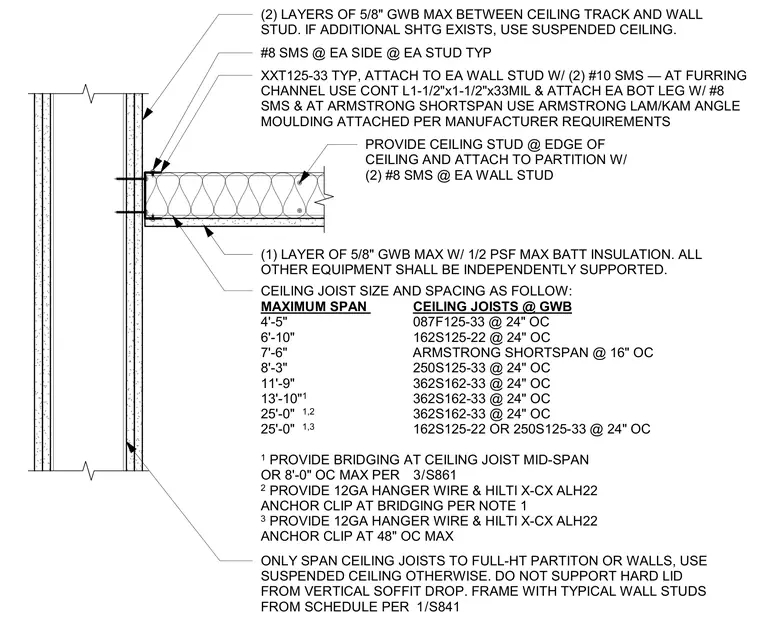

A hard lid gypsum board ceiling connects to a cold-formed metal framing wall partition. The assembly accommodates up to two layers of 5/8-inch gypsum board between the ceiling track and wall stud when additional sheathing exists. Ceiling joists span to full-height partitions using designated member sizes and spacings based on span length, ranging from light track sections up to heavy structural studs with mandatory bridging and 12-gauge hanger wires with Hilti anchor clips where required. Perimeter ceiling studs attach directly to the partition using number 8 sheet metal screws at each wall stud, supporting a single layer of 5/8-inch gypsum board and a maximum 1/2 pound per square foot batt insulation.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
