A Simpson HUS410 face mount hanger is attached to a hollow structural section curb using eight number 12 screws. The wood curb is notched as required and sized per plan.

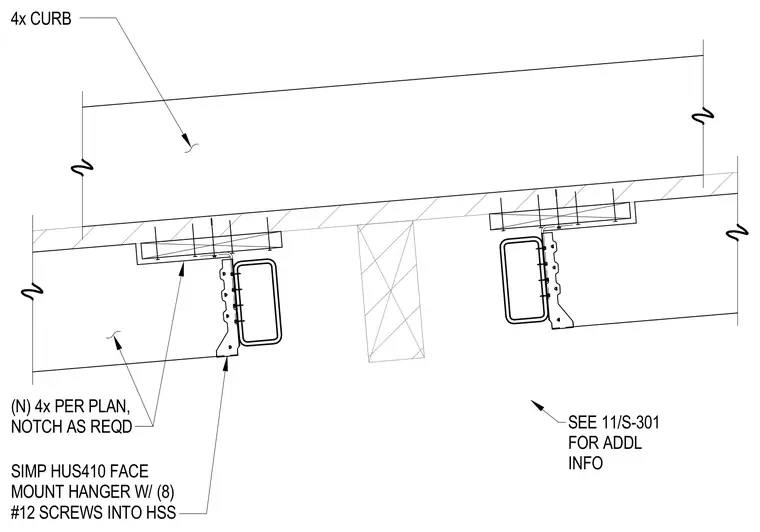

SEE 11/S-301 FOR ADDL INFO (N) 4x PER PLAN, NOTCH AS REQD SIMP HUS410 FACE MOUNT HANGER W/ (8) #12 SCREWS INTO HSS 4x CURB
