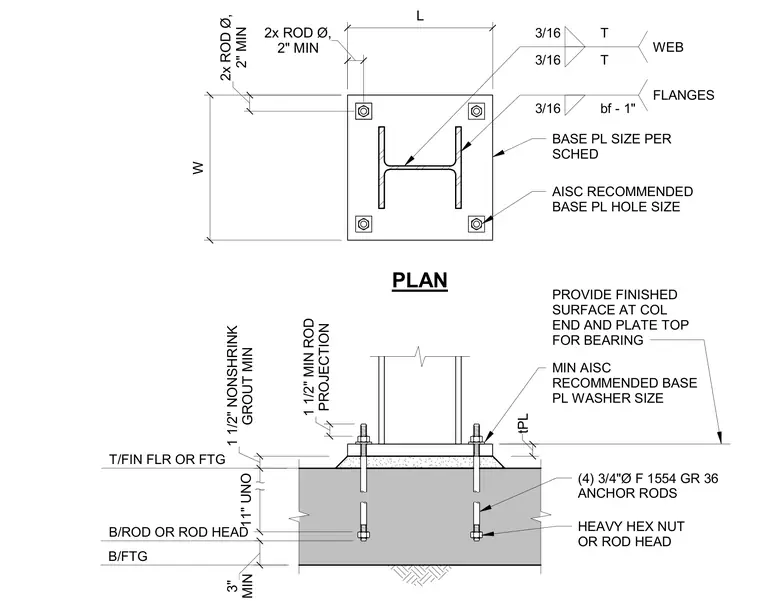

A structural steel column bears on a steel base plate sized per schedule, connected with three-sixteenths inch fillet welds to the column flanges and web. Four three-quarter-inch-diameter ASTM F1554 Grade 36 anchor rods with heavy hex nuts or rod heads secure the plate to the concrete foundation, embedded eleven inches minimum unless noted otherwise. A one-and-a-half-inch minimum layer of nonshrink grout is placed beneath the base plate over the concrete footing. A finished bearing surface is provided at the column end and plate top, with washers sized per American Institute of Steel Construction recommendations.
T/FIN FLR OR FTG B/ROD OR ROD HEAD B/FTG 3/16 T 3/16 T WEB 3/16 bf - 1" FLANGES BASE PL SIZE PER SCHED AISC RECOMMENDED BASE PL HOLE SIZE MIN 3" (4) 3/4"Ø F 1554 GR 36 ANCHOR RODS HEAVY HEX NUT OR ROD HEAD PLAN MIN AISC RECOMMENDED BASE PL WASHER SIZE PROVIDE FINISHED SURFACE AT COL END AND PLATE TOP FOR BEARING L W 2" MIN 2x ROD Ø, 2" MIN 2x ROD Ø, tPL PROJECTION 1 1/2" MIN ROD 11" UNO GROUT MIN 1 1/2" NONSHRINK
