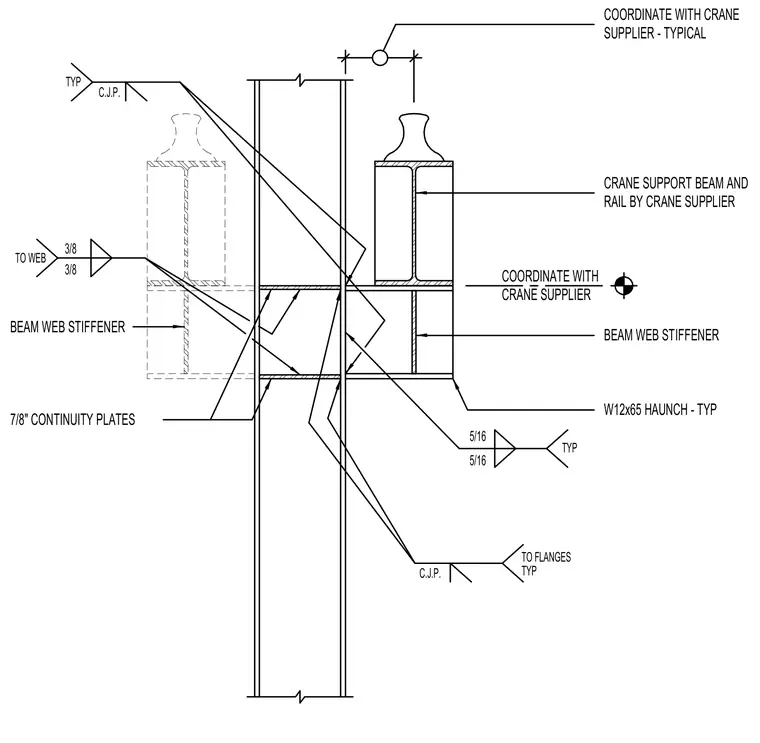

A crane support beam and rail provided by the crane supplier is mounted atop a typical W12x65 haunch framing into a structural steel column. Seven-eighth-inch continuity plates align with the beam flanges inside the column web, secured with complete joint penetration welds. Beam web stiffeners are welded to the web with three-eighth-inch fillet welds typical on both sides, while the haunch flanges connect with five-sixteenth-inch fillet welds typical. All structural interfaces require field coordination with the crane supplier.
CRANE SUPPORT BEAM AND RAIL BY CRANE SUPPLIER TO WEB 3/8 3/8 TYP C.J.P. TO FLANGES 5/16 5/16 TYP C.J.P. BEAM WEB STIFFENER TYP COORDINATE WITH CRANE SUPPLIER - TYPICAL COORDINATE WITH CRANE SUPPLIER 7/8" CONTINUITY PLATES W12x65 HAUNCH - TYP BEAM WEB STIFFENER
