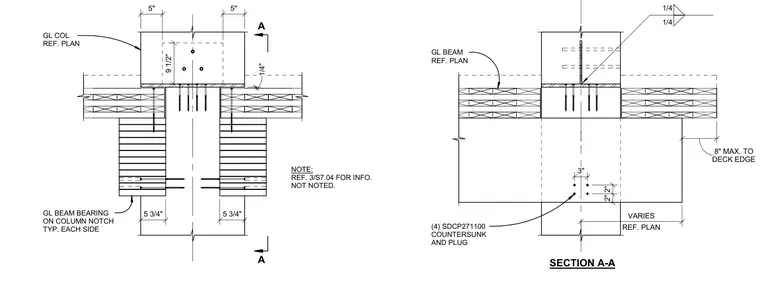

The double glulam beams bear on a notched perimeter glulam column with a typical five-inch bearing width on each side. The assembly is secured using four SDCP271100 countersunk and plugged fasteners at a three-inch spacing, with deck edges positioned up to eight inches maximum. A 1/4-inch fillet weld size is indicated at the column connection interface, and additional details are referenced on sheet S7.04.
SECTION A-A NOTE: REF. 3/S7.04 FOR INFO. NOT NOTED. A 5 3/4" REF. PLAN VARIES 1/4" GL BEAM BEARING ON COLUMN NOTCH TYP. EACH SIDE DECK EDGE 8" MAX. TO (4) SDCP271100 COUNTERSUNK AND PLUG 2" 2" 3" GL BEAM REF. PLAN GL COL. REF. PLAN 1/4 1/4 9 1/2" A 5 3/4" 5" 5"
