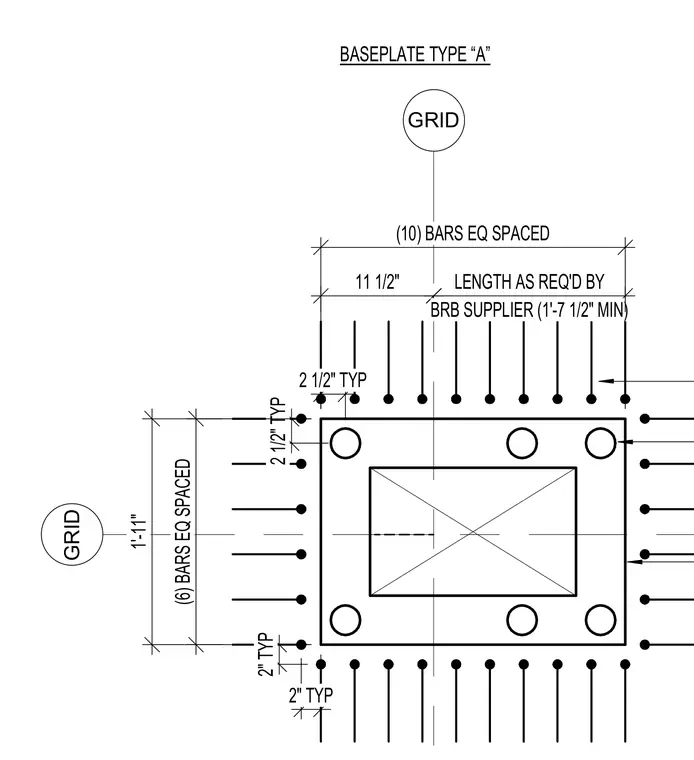

Baseplate Type A features a rectangular steel embed plate with anchor locations and perimeter reinforcing bars. The assembly includes six bars equally spaced along the 1-11" vertical dimension and ten bars equally spaced along the horizontal dimension with lengths as required by the BRB supplier (1'-7 1/2" minimum). Edge distances are dimensioned at 2 1/2" typical and 2" typical from the plate edges.
BASEPLATE TYPE “A” 2 1/2" TYP GRID 11 1/2" BRB SUPPLIER (1'-7 1/2" MIN) LENGTH AS REQ'D BY GRID 2 1/2" TYP 1'-11" (6) BARS EQ SPACED (10) BARS EQ SPACED 2" TYP 2" TYP
