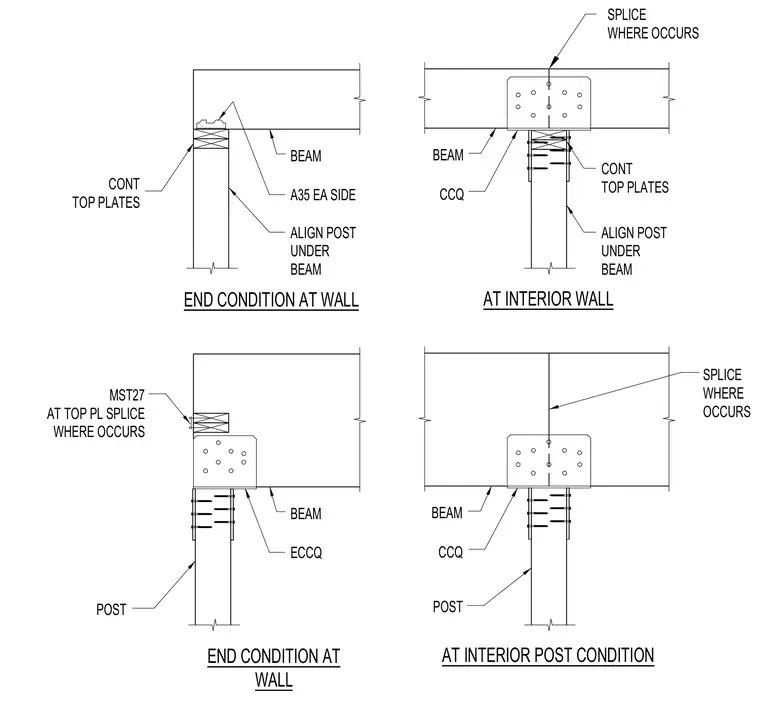

These structural framing details show wood beams bearing on wood posts at wall and interior conditions. The end condition at the wall utilizes continuous top plates beneath the beam and A35 framing angles on each side. Interior wall and interior post conditions incorporate CCQ or ECCQ post caps securing the beam to aligned posts below. Splices are detailed where required, including MST27 strap ties at top plate splices.
END CONDITION AT WALL AT INTERIOR POST CONDITION END CONDITION AT WALL AT INTERIOR WALL POST MST27 AT TOP PL SPLICE WHERE OCCURS CCQ POST BEAM BEAM CCQ CONT TOP PLATES BEAM ECCQ A35 EA SIDE BEAM ALIGN POST UNDER BEAM SPLICE WHERE OCCURS SPLICE WHERE OCCURS ALIGN POST UNDER BEAM CONT TOP PLATES
