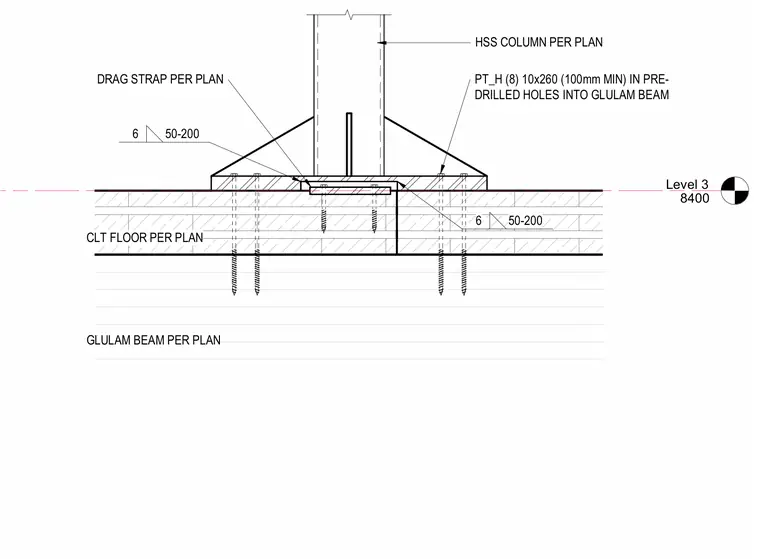

An HSS column bears onto a base plate anchored to a CLT floor and underlying glulam beam. The base plate is secured using eight 10x260 fasteners installed in pre-drilled holes into the glulam beam. A drag strap is integrated at the floor level per plan. Gusset plates are welded to the HSS column and base plate.
Level 3 8400 PT_H (8) 10x260 (100mm MIN) IN PRE- DRILLED HOLES INTO GLULAM BEAM CLT FLOOR PER PLAN 6 50-200 HSS COLUMN PER PLAN GLULAM BEAM PER PLAN 6 50-200 DRAG STRAP PER PLAN
