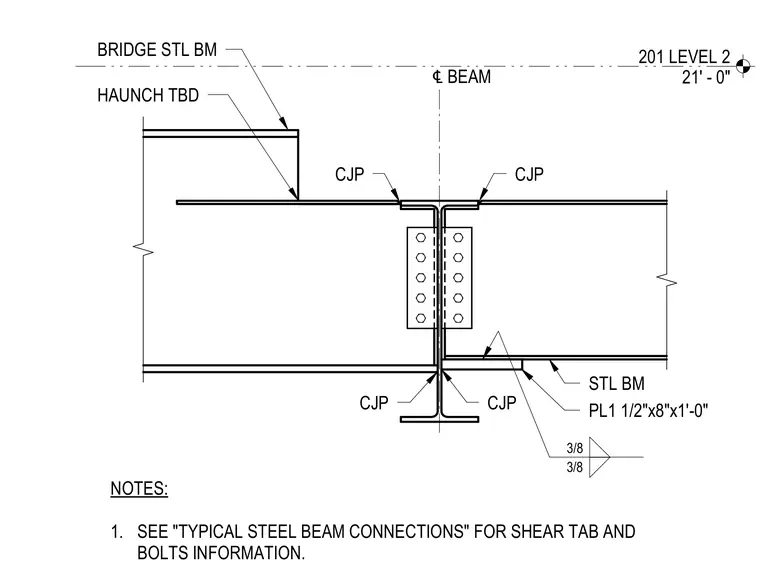

A structural steel beam connects to a bridge steel beam assembly at Level 2, located at elevation 21 feet zero inches. The web utilizes a single plate measuring 1/2 inch by 8 inches by 1'-0" secured with a bolted connection, with shear tab and bolt information referenced to typical steel beam connections. Complete joint penetration welds join the top and bottom flanges. A haunch of to-be-determined dimensions is provided above the bridge steel beam.
201 LEVEL 2 21' - 0" 3/8 3/8 NOTES: 1. SEE "TYPICAL STEEL BEAM CONNECTIONS" FOR SHEAR TAB AND BOLTS INFORMATION. STL BM PL1 1/2"x8"x1'-0" BRIDGE STL BM ℄ BEAM CJP CJP CJP CJP HAUNCH TBD
