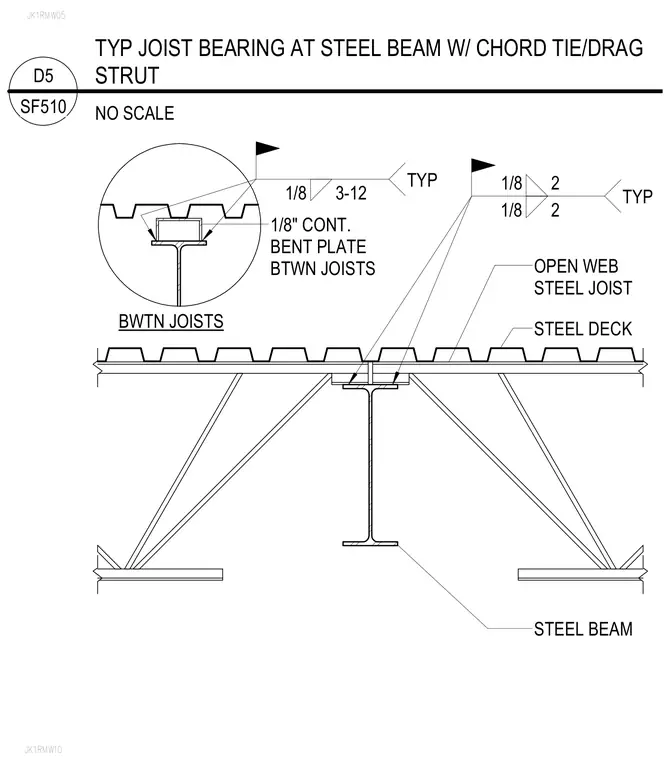

An open-web steel joist bears directly on top of a wide-flange steel beam supporting a profiled steel deck. A one-eighth inch thick continuous bent plate is placed between the joists and welded with one-eighth inch welds at three inches on center typically. Additional one-eighth inch fillet welds secure the joist bearing seat to the supporting steel beam.
JK1RMW05 JK1RMW10 BWTN JOISTS 1/8" CONT. BENT PLATE BTWN JOISTS 1/8 3-12 TYP STEEL BEAM STEEL DECK OPEN WEB STEEL JOIST 1/8 2 1/8 2 TYP NO SCALE SF510 D5 TYP JOIST BEARING AT STEEL BEAM W/ CHORD TIE/DRAG STRUT
