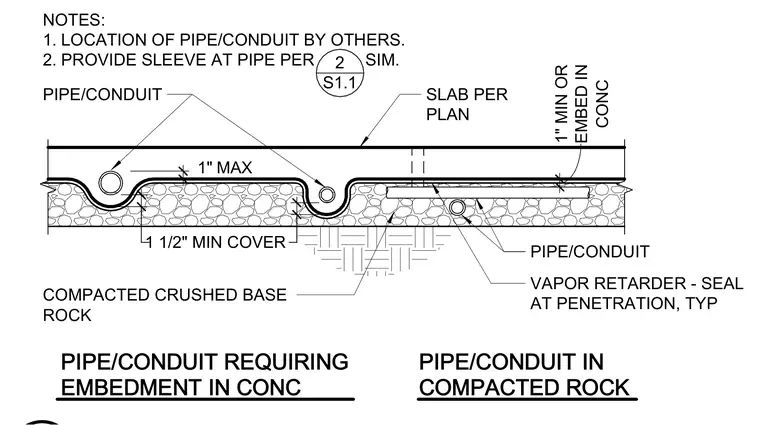

This structural detail shows utility pipes and electrical conduits routed within a concrete slab-on-grade and underlying compacted crushed base rock. The assembly rests on compacted rock with a vapor retarder that is sealed at all pipe and conduit penetrations. Conduits and pipes are embedded either directly within the concrete slab requiring a minimum one inch of cover or one and one-half inches of embedment, or set within the compacted rock beneath the slab. Sleeves are provided at pipe penetrations per similar details, and utility locations are coordinated by others.
PIPE/CONDUIT IN COMPACTED ROCK PIPE/CONDUIT REQUIRING EMBEDMENT IN CONC MAX 1" PIPE/CONDUIT SLAB PER PLAN PIPE/CONDUIT VAPOR RETARDER - SEAL AT PENETRATION, TYP COMPACTED CRUSHED BASE ROCK NOTES: 1. LOCATION OF PIPE/CONDUIT BY OTHERS. 2. PROVIDE SLEEVE AT PIPE PER SIM. CONC 1" MIN OR EMBED IN 1 1/2" MIN COVER 2 S1.1
