Structural · S-ZK6DC

Tapered Beam Cantilever Connection

Materials

Steel Timber / Wood

Elements

Beams Walls Curtain Walls Facades / Cladding Arches Connections / Plates

Connections

HSS Connection Welded Connection

About this detail

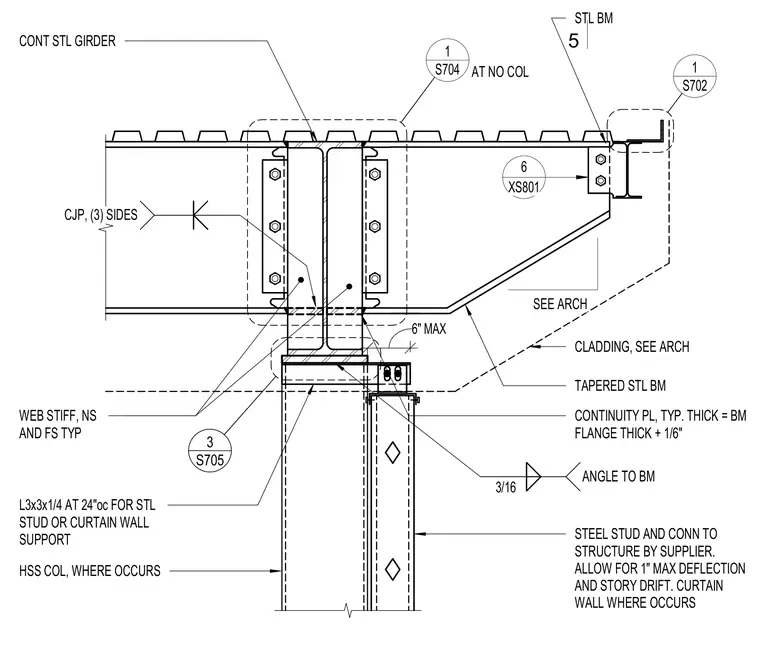

A tapered steel beam frames into a continuous steel girder supported by a hollow structural section column. Continuity plates are provided at the connection, with a typical thickness equal to the beam flange thickness plus one-sixteenth of an inch. Web stiffeners are installed on both the near side and far side typical. Complete joint penetration welds on three sides secure the connection. An angle measuring three by three by one-quarter inch at twenty-four inches on center provides support for steel studs or curtain walls, allowing for one inch of maximum deflection and story drift.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
