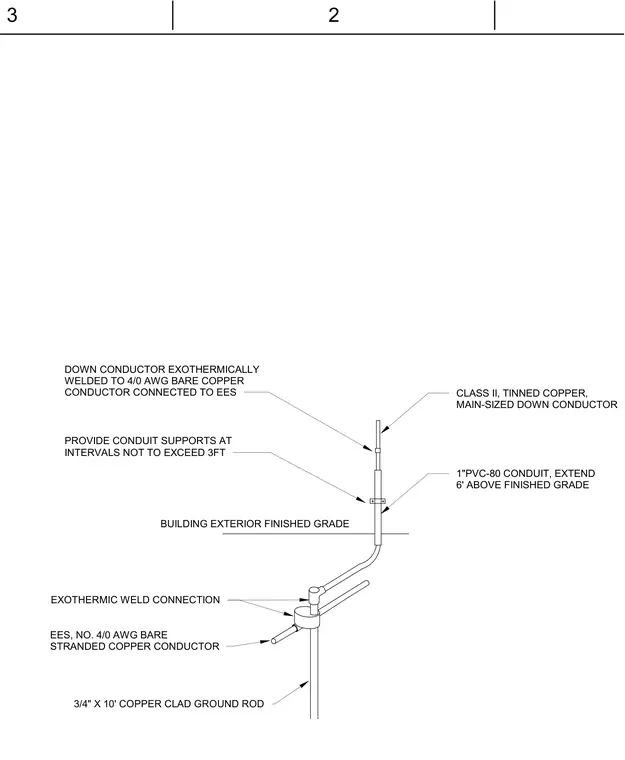

A Class II tinned copper main-sized down conductor transitions into a 1-inch PVC-80 conduit that extends six feet above the building exterior finished grade. Conduit supports are provided at intervals not to exceed three feet. The down conductor connects via an exothermic weld to a No. 4/0 AWG bare stranded copper conductor. This conductor links to a 3/4-inch by 10-foot copper-clad ground rod of the earth electrode system.
3/4" X 10' COPPER CLAD GROUND ROD EES, NO. 4/0 AWG BARE STRANDED COPPER CONDUCTOR EXOTHERMIC WELD CONNECTION BUILDING EXTERIOR FINISHED GRADE PROVIDE CONDUIT SUPPORTS AT INTERVALS NOT TO EXCEED 3FT 1"PVC-80 CONDUIT, EXTEND 6' ABOVE FINISHED GRADE CLASS II, TINNED COPPER, MAIN-SIZED DOWN CONDUCTOR DOWN CONDUCTOR EXOTHERMICALLY WELDED TO 4/0 AWG BARE COPPER CONDUCTOR CONNECTED TO EES 3 2
