Structural · S-ZJZJJ

Typical Braced Frame - Beam Condition

Materials

Steel

Elements

Beams Bracing Connections / Plates

Connections

Braced Frame Connection Gusset Plate Bracing Connection Welded Connection

About this detail

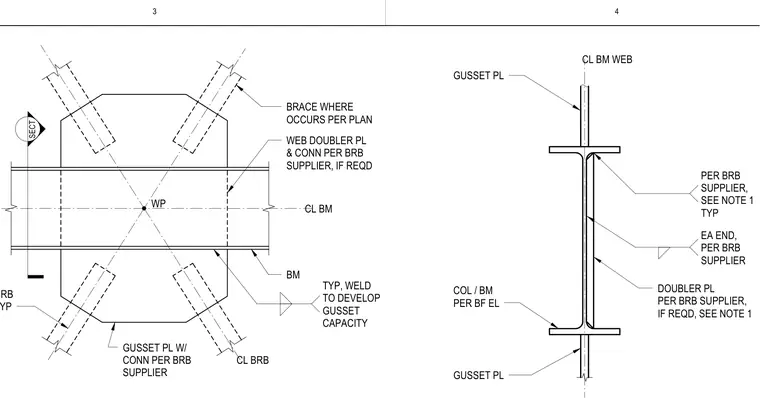

The assembly features a structural steel beam intersecting with buckling-restrained braces at a common work point. Gusset plates connect the braces to the beam and column, with sizing and connections engineered per the buckling-restrained brace supplier. A web doubler plate is provided at the beam web where required by structural loads. Welds are sized to fully develop the capacity of the gusset plate.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
