Roof Parapet Framing at Double Wall Parallel

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)

Elements

Beams Walls Curtain Walls Roofs Parapets Decks Arches Insulation Connections / Plates

Connections

Welded Connection Timber / Mass-Timber Connection

About this detail

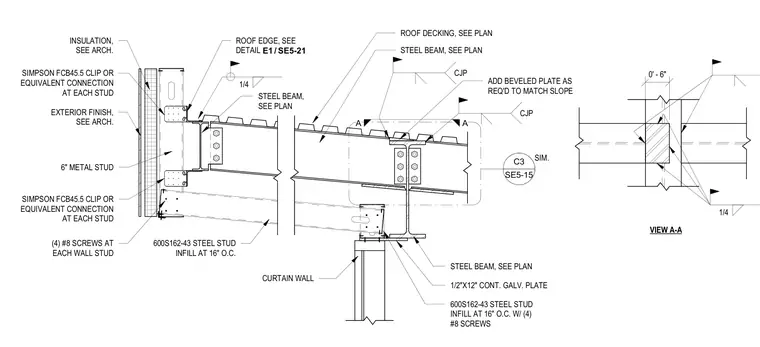

Roof parapet framing at a double wall parallel condition features structural steel beams sized per plan supporting a roof deck. Cold-formed 600S162-43 steel stud infill is spaced at sixteen inches on center and secured with four number eight screws at each wall stud, connected via Simpson FCB45.5 clips or equivalent. Beveled plates are added as required to match the roof slope, with complete joint penetration welds indicated at structural intersections. A continuous one-half by twelve inch galvanized plate ties into the assembly above a curtain wall support. View A-A provides an enlarged connection breakdown showing specific weld sizes and dimensional clearance.
