Structural · S-ZJTTN

Typical Beam Web Stiffener Plate and Connection Detail

Materials

Steel

Elements

Beams Connections / Plates

Connections

Welded Connection Bolted Connection

About this detail

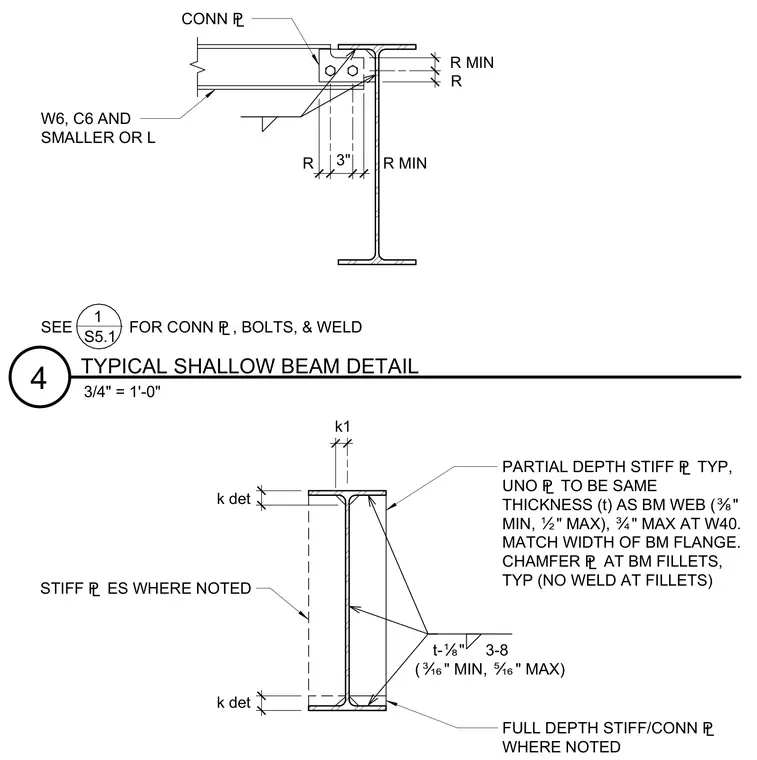

A structural steel connection utilizes beam web stiffener plates for shallow beams such as W6, C6, and smaller shapes. A connection plate is bolted to the beam web, with plate thicknesses matching the beam web and varying from three-eighths inch minimum to one-half inch maximum, and up to three-quarters inch maximum for W40 sections. Stiffener plates feature chamfers at the beam fillets left unwelded at the fillets, with fillet weld sizes specified between three-sixteenths inch and five-sixteenths inch. Partial depth and full depth stiffener plates are provided where noted to reinforce the beam web and flanges.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
