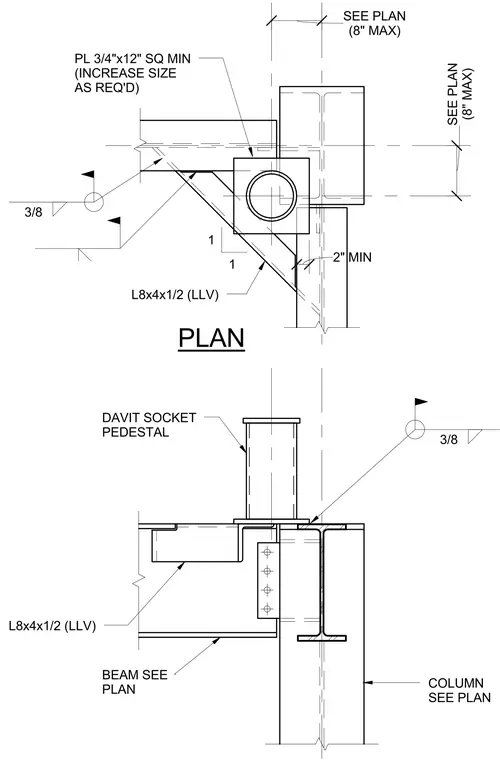

A davit socket pedestal is supported by a structural steel corner column and beam assembly. A square steel base plate measuring three-quarters of an inch by twelve inches is welded beneath the pedestal with three-eighths-inch fillet welds. Diagonal bracing angles sized L8x4x1/2 long leg vertical provide lateral support from the framing. The beam and column sizes are sized per plan, with specific maximum offsets and minimum clearances indicated.
PLAN COLUMN SEE PLAN L8x4x1/2 (LLV) DAVIT SOCKET PEDESTAL BEAM SEE PLAN L8x4x1/2 (LLV) 1 1 PL 3/4"x12" SQ MIN (INCREASE SIZE AS REQ'D) 3/8 (8" MAX) SEE PLAN (8" MAX) SEE PLAN 2" MIN 3/8
