A steel stub cantilever beam is shop-attached to a structural steel column using quarter-inch fillet welds on both the wide-flange and hollow structural section configurations. The stub matches the size of the connecting steel beam per plan, unless otherwise noted. A bolted shear connection links the stub cantilever to the continuous steel beam using standard connection details. Quarter-inch fillet welds are applied around the perimeter of the beam flanges and web where they meet the column flange.

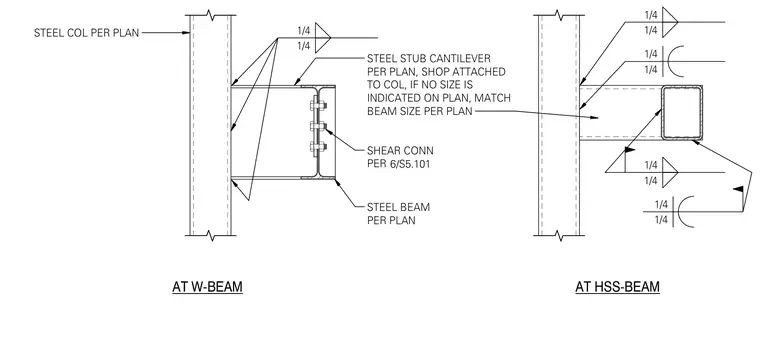

1/4 1/4 STEEL STUB CANTILEVER PER PLAN, SHOP ATTACHED TO COL, IF NO SIZE IS INDICATED ON PLAN, MATCH BEAM SIZE PER PLAN STEEL BEAM PER PLAN SHEAR CONN PER STEEL COL PER PLAN 1/4 1/4 AT W-BEAM AT HSS-BEAM 1/4 1/4 1/4 1/4 1/4 1/4 6/S5.101
