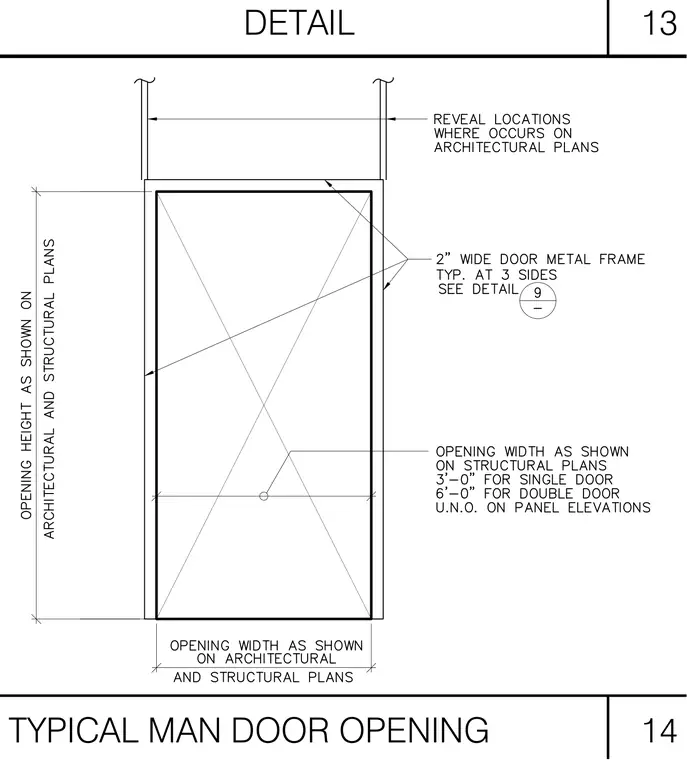

A standard man door opening features a two-inch wide metal door frame typical at three sides. The opening width measures three feet zero inches for a single door and six feet zero inches for a double door unless noted otherwise on panel elevations. Reveal locations are coordinated per architectural plans. Opening heights and widths are governed by structural and architectural plans.
