Built Up Steel Wide Flange Column Types a and B

Materials

Connections

About this detail

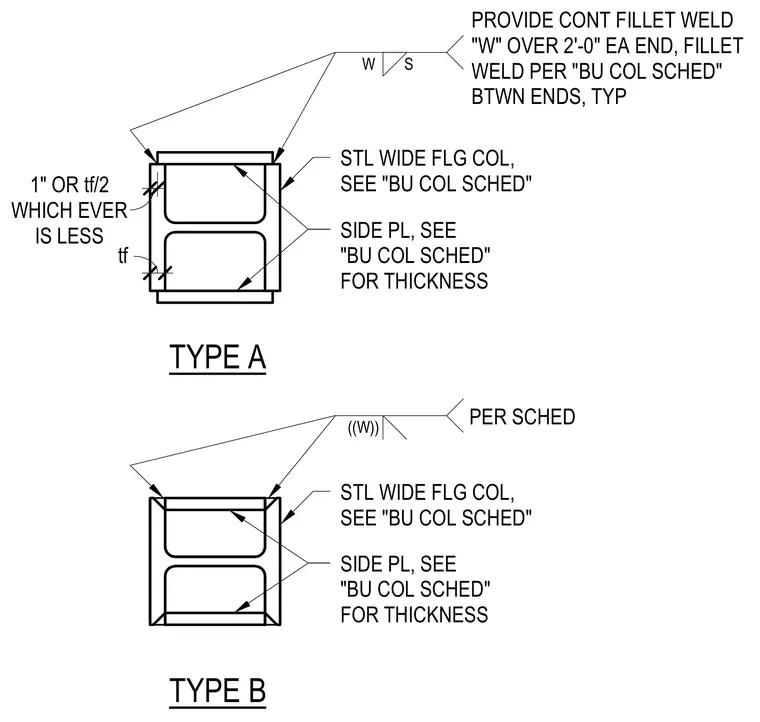

Built-up steel wide-flange column cross-sections designated as Type A and Type B. The assembly consists of a steel wide flange column with side plates welded to the flanges, with plate thicknesses sized per the built-up column schedule. Type A specifies continuous fillet welds over two feet at each end, with intermediate fillet welds per schedule and a setback dimension of one inch or half the flange thickness, whichever is less. Type B shows alternative welded configurations referencing the structural schedule.
