Typical Braced Frame Column and Anchorage

Materials

Concrete

Elements

Columns Walls Foundations / Footings Bracing Anchors / Embeds Connections / Plates Reinforcing

Connections

Braced Frame Connection Gusset Plate Base Plate / Anchorage Bracing Connection Rebar Splice / Development

About this detail

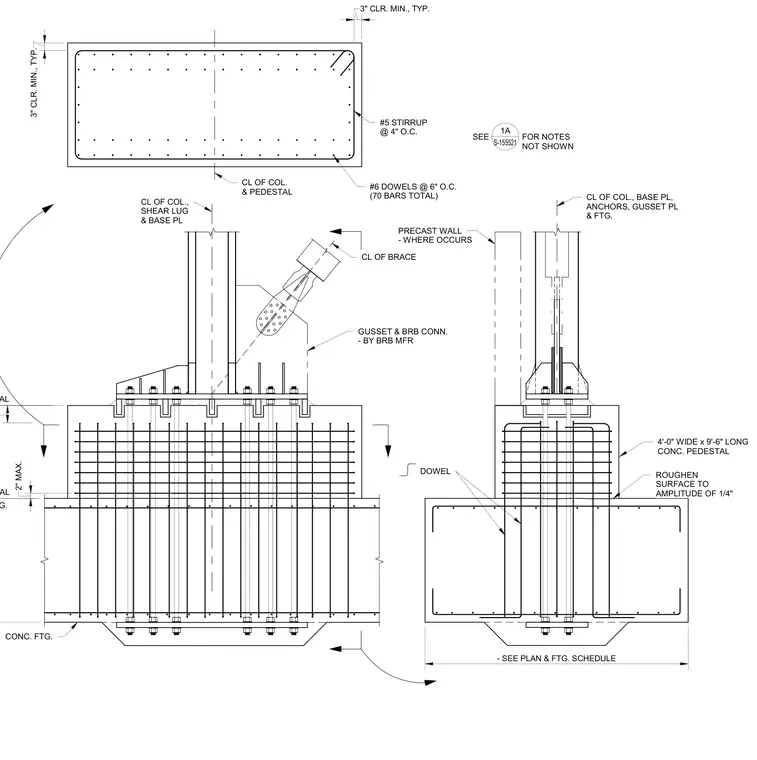

A braced frame column base plate and anchorage assembly bears on a four-foot-wide by nine-foot-six-inch-long concrete pedestal and footing. The concrete pedestal is reinforced with number five stirrups at four inches on center and seventy number six dowels at six inches on center, maintaining a minimum three-inch concrete clear cover throughout. The structural column, shear lug, base plate, anchors, and gusset plate align on center with the footing, while the gusset and buckling-restrained brace connection are provided by the brace manufacturer. The construction interface includes a precast wall where indicated, with the top of the footing surface roughened to an amplitude of one-quarter inch.
