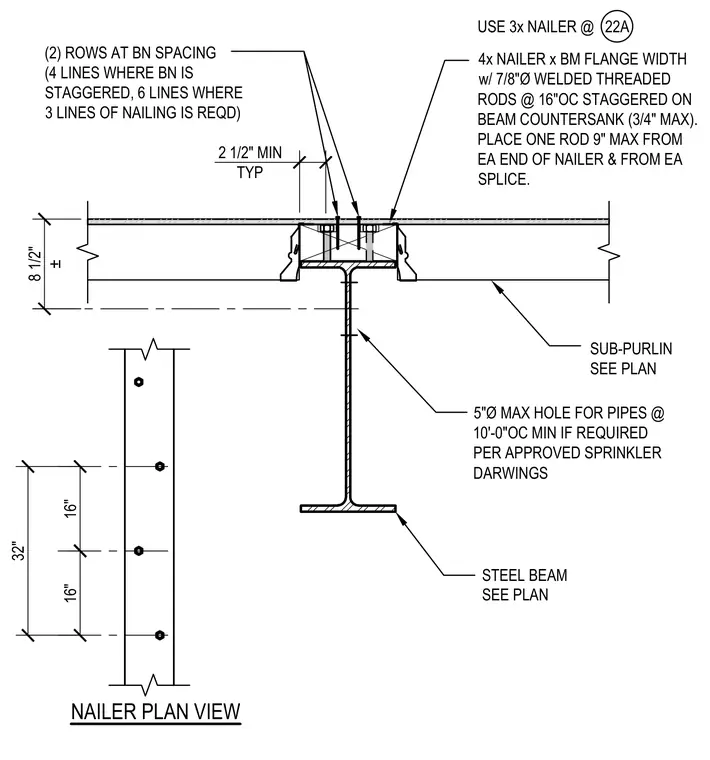

A four-times nominal wood nailer matches the beam flange width and connects with seven-eighths-inch diameter welded threaded rods at sixteen inches on-center staggered on the beam, countersunk to a maximum of three-quarters of an inch. One rod is placed a maximum of nine inches from each end of the nailer and from each splice. Sub-purlins are sized per plan and spaced eight and one-half inches plus or minus from the steel beam. A nailer plan view includes two rows at bolt spacing, utilizing four lines where bolt spacing is staggered and six lines where three lines of nailing are required. A five-inch diameter maximum hole for pipes is provided at ten feet on-center minimum if required per approved sprinkler drawings, maintaining a two and one-half inch minimum typically. A three-times nailer is specified per detail twenty-two A.
4x NAILER x BM FLANGE WIDTH w/ 7/8"Ø WELDED THREADED RODS @ 16"OC STAGGERED ON BEAM COUNTERSANK (3/4" MAX). PLACE ONE ROD 9" MAX FROM EA END OF NAILER & FROM EA SPLICE. SUB-PURLIN SEE PLAN 8 1/2" ± STEEL BEAM SEE PLAN 16" 16" 32" NAILER PLAN VIEW (2) ROWS AT BN SPACING (4 LINES WHERE BN IS STAGGERED, 6 LINES WHERE 3 LINES OF NAILING IS REQD) 5"Ø MAX HOLE FOR PIPES @ 10'-0"OC MIN IF REQUIRED PER APPROVED SPRINKLER DARWINGS 2 1/2" MIN TYP USE 3x NAILER @ 22A
