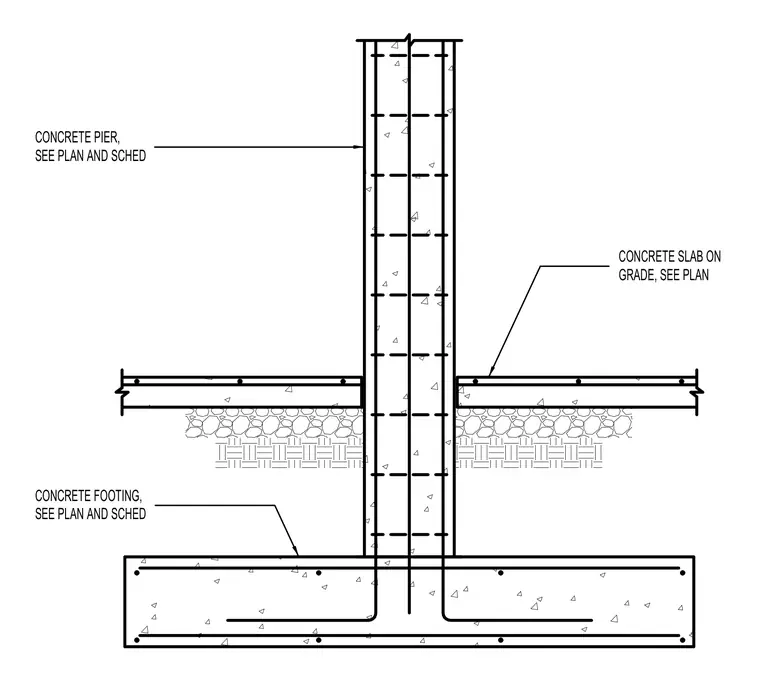

A vertical concrete pier extends upward from a concrete footing, with sizing and reinforcement governed per plan and schedule. A concrete slab on grade intersects the pier at the upper level, bearing on subgrade material.
CONCRETE SLAB ON GRADE, SEE PLAN CONCRETE PIER, SEE PLAN AND SCHED CONCRETE FOOTING, SEE PLAN AND SCHED
