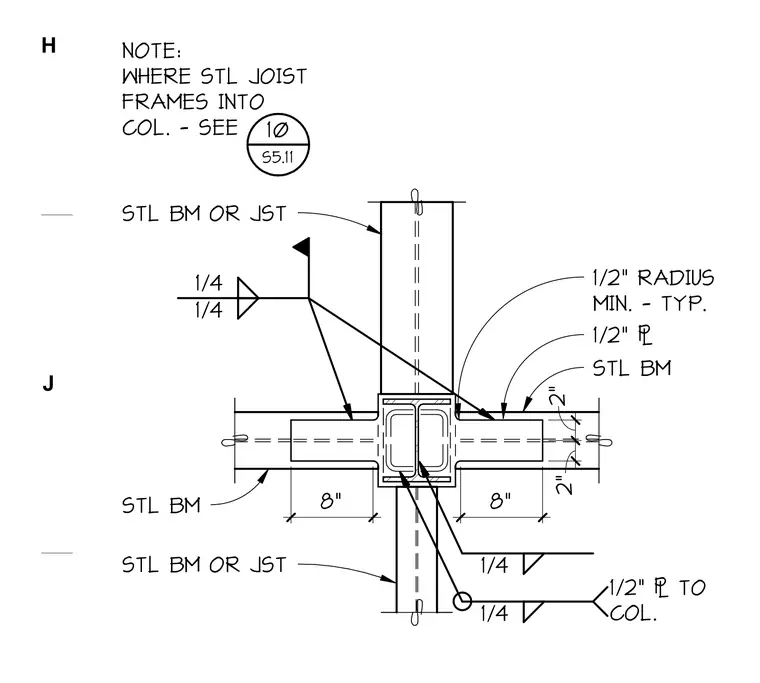

Steel beams or open-web steel joists frame into the flanges and web of a structural steel column. Half-inch thick connection plates extend eight inches beyond the column face, welded with quarter-inch fillet welds. A half-inch radius minimum is detailed typically at the plate corners. A note references detail 10 on sheet S5.11 where a steel joist frames into the column.
10 S5.11 1/4 1/4 8" 8" 1/4 STL BM OR JST 1/2" NOTE: WHERE STL JOIST FRAMES INTO COL. - SEE STL BM STL BM STL BM OR JST 2" 2" 1/4 1/2" TO COL. 1/2" RADIUS MIN. - TYP. H J
