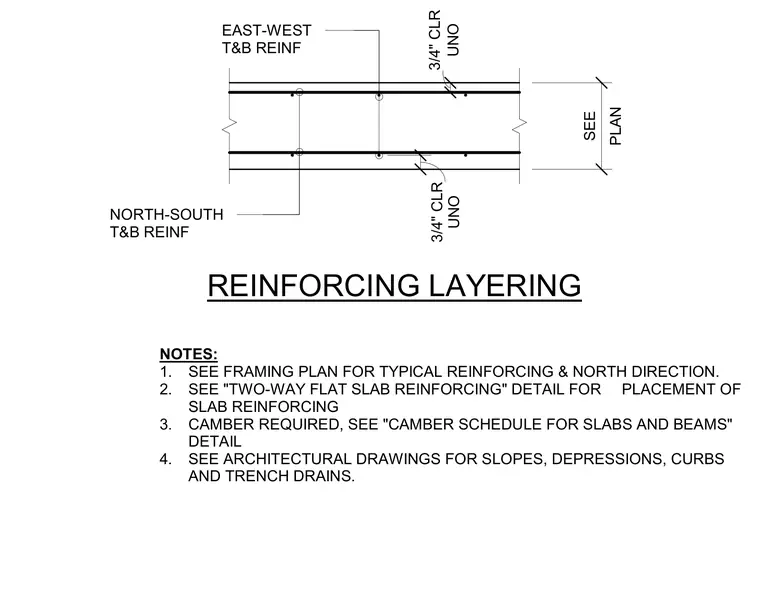

A concrete slab assembly details the relative placement of north-south and east-west top and bottom reinforcing bars. A standard three-quarter-inch clear cover is maintained unless noted otherwise. Slab thickness is sized per plan, and reinforcing orientation follows the structural framing plan.
NOTES: 1. SEE FRAMING PLAN FOR TYPICAL REINFORCING & NORTH DIRECTION. 2. SEE "TWO-WAY FLAT SLAB REINFORCING" DETAIL FOR PLACEMENT OF SLAB REINFORCING 3. CAMBER REQUIRED, SEE "CAMBER SCHEDULE FOR SLABS AND BEAMS" DETAIL 4. SEE ARCHITECTURAL DRAWINGS FOR SLOPES, DEPRESSIONS, CURBS AND TRENCH DRAINS. REINFORCING LAYERING PLAN SEE UNO 3/4" CLR UNO 3/4" CLR NORTH-SOUTH T&B REINF EAST-WEST T&B REINF
