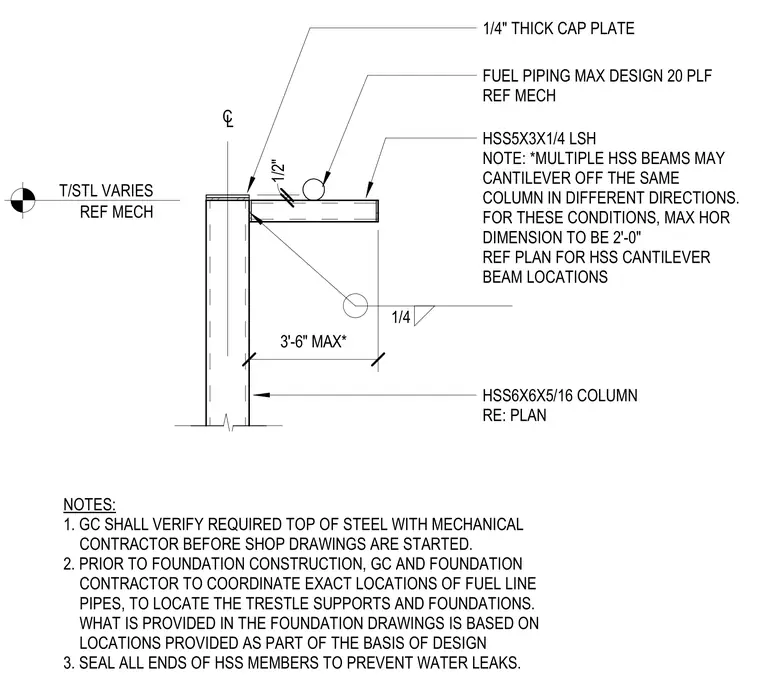

This assembly consists of an HSS 5x3x1/4 hollow structural section cantilever beam welded to an HSS 6x6x5/16 column. A 1/4 inch thick cap plate is provided at the top of the column. The cantilever beam is secured with a 1/4 inch fillet weld. The assembly supports fuel piping with a maximum design load of 20 pounds per linear foot. The maximum horizontal cantilever dimension is 3 feet 6 inches, or 2 feet 0 inches when multiple beams cantilever from the same column. All ends of the hollow structural section members must be sealed to prevent water leaks.
Text on the drawing
1/4 HSS5X3X1/4 LSH NOTE: *MULTIPLE HSS BEAMS MAY CANTILEVER OFF THE SAME COLUMN IN DIFFERENT DIRECTIONS. FOR THESE CONDITIONS, MAX HOR DIMENSION TO BE 2'-0" REF PLAN FOR HSS CANTILEVER BEAM LOCATIONS FUEL PIPING MAX DESIGN 20 PLF REF MECH HSS6X6X5/16 COLUMN RE: PLAN CL DETAIL A 1/4" THICK CAP PLATE T/STL VARIES REF MECH 1/2" NOTES: 1. GC SHALL VERIFY REQUIRED TOP OF STEEL WITH MECHANICAL CONTRACTOR BEFORE SHOP DRAWINGS ARE STARTED. 2. PRIOR TO FOUNDATION CONSTRUCTION, GC AND FOUNDATION CONTRACTOR TO COORDINATE EXACT LOCATIONS OF FUEL LINE PIPES, TO LOCATE THE TRESTLE SUPPORTS AND FOUNDATIONS. WHAT IS PROVIDED IN THE FOUNDATION DRAWINGS IS BASED ON LOCATIONS PROVIDED AS PART OF THE BASIS OF DESIGN 3. SEAL ALL ENDS OF HSS MEMBERS TO PREVENT WATER LEAKS. 3'-6" MAX*
