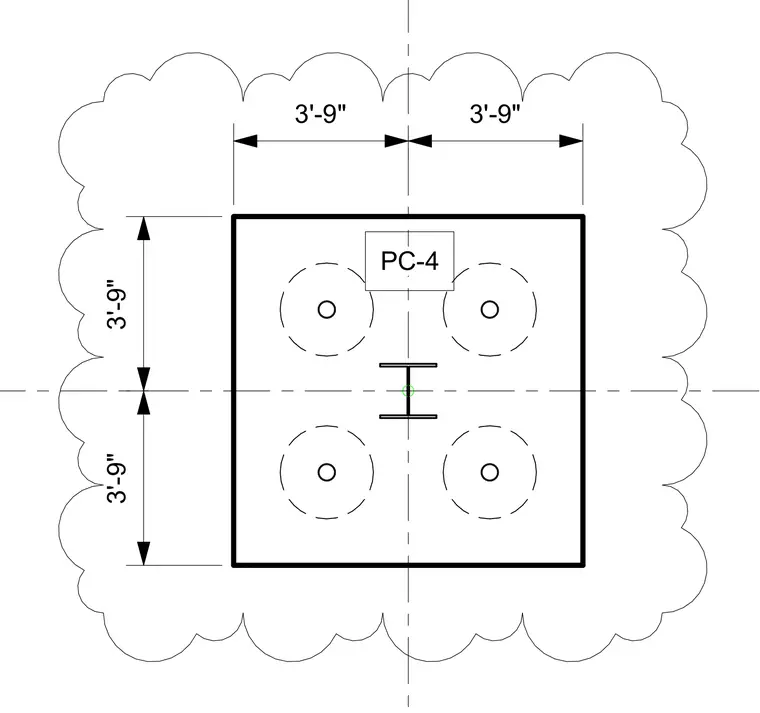

A structural steel column with an I-section profile is centered on a square base plate marked PC-four. Four anchor bolts are positioned symmetrically around the column with a spacing of three feet nine inches in both orthogonal directions. Centerlines intersect at the exact center of the column profile.
