Typical Brace Connection at Steel Beam

Materials

Concrete Steel Metal (misc.)Composite

Elements

Beams Floors / Slabs Decks Bracing Connections / Plates

Connections

Braced Frame Connection Bracing Connection Welded Connection Shear Stud / Composite Deck Attachment

About this detail

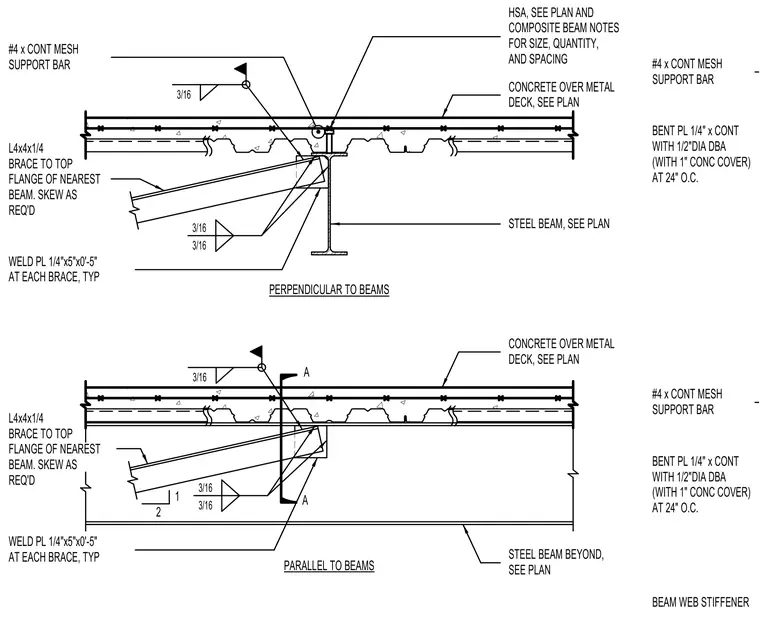

A typical brace connection at a steel beam supporting concrete over a metal deck includes an L4x4x1/4 structural angle brace connecting to the top flange of the nearest steel beam, skewed as required, with three-sixteenth-inch fillet welds securing a quarter-inch by five-inch by five-inch plate at each brace. A continuous number four mesh support bar runs parallel above the deck. A continuous quarter-inch bent plate with half-inch diameter deformed bar anchors providing one inch of concrete cover is spaced at twenty-four inches on center. The supporting steel beam and composite beam shear anchors are sized per plan.
