An inframing beam per plan connects to a structural support utilizing a three-eighths-inch thick bent plate and a three-eighths-inch thick plate spaced at four feet zero inches on center, aligned to the inframing beam web where possible. A stiffened clip provides gravity and lateral connection attached to the bent plate per cold-formed metal framing delegated design. One-quarter-inch stiffener plates spaced at four feet zero inches on center align with the gusset below, welded with one-quarter-inch fillet welds on three sides typically. A web connection per plan utilizes bolts through the beam web and a connecting plate. Additional three-sixteenths-inch fillet welds secure the clip angle and stiffener components.

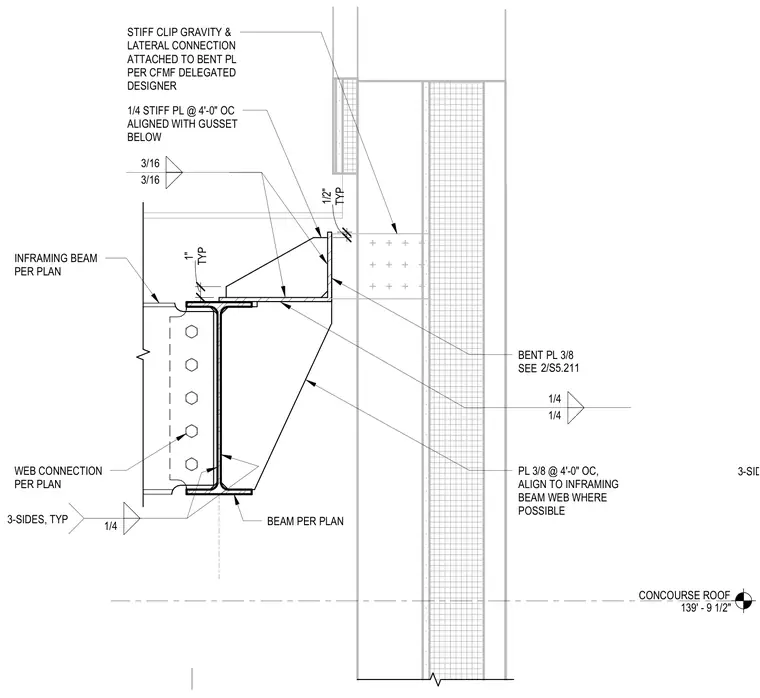

3-SIDES, TYP CONCOURSE ROOF 139' - 9 1/2" PL 3/8 @ 4'-0" OC, ALIGN TO INFRAMING BEAM WEB WHERE POSSIBLE 1/4 1/4 STIFF CLIP GRAVITY & LATERAL CONNECTION ATTACHED TO BENT PL PER CFMF DELEGATED DESIGNER BEAM PER PLAN BENT PL 3/8 SEE 1/4 STIFF PL @ 4'-0" OC ALIGNED WITH GUSSET BELOW TYP 1/2" TYP 1" 3/16 3/16 2/S5.211 WEB CONNECTION PER PLAN 1/4 3-SIDES, TYP INFRAMING BEAM PER PLAN
