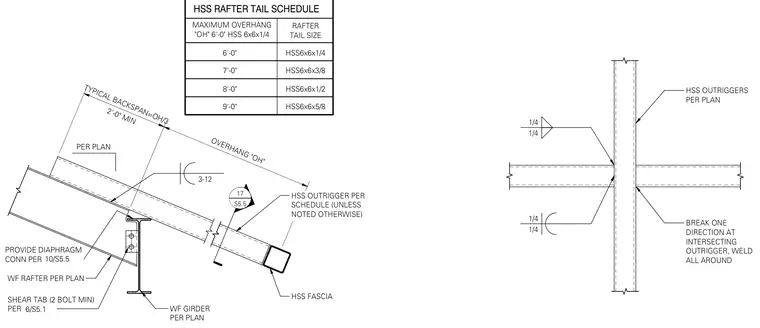

A structural steel HSS rafter tail framing connection is supported by a wide-flange girder with a two-bolt minimum shear tab. The assembly incorporates an HSS fascia, hollow structural section outriggers sized per the schedule, and a wide-flange rafter with a typical backspan dimension equal to one-third of the overhang. Intersecting outriggers break in one direction and are welded all around with quarter-inch fillet welds. Additional requirements include diaphragm connections per sheet S5.5 and shear tab connections per sheet S5.1.
HSS FASCIA OVERHANG "OH" 2'-0" MIN TYPICAL BACKSPAN=OH/3 PER PLAN 3-12 WF RAFTER PER PLAN SHEAR TAB (2 BOLT MIN) PER WF GIRDER PER PLAN HSS OUTRIGGER PER SCHEDULE (UNLESS NOTED OTHERWISE) HSS RAFTER TAIL SCHEDULE MAXIMUM OVERHANG "OH" 6'-0" HSS 6x6x1/4 RAFTER TAIL SIZE 7'-0" HSS6x6x3/8 8'-0" HSS6x6x1/2 9'-0" HSS6x6x5/8 6'-0" HSS6x6x1/4 PROVIDE DIAPHRAGM CONN PER S5.5 17 ____ 6/S5.1 10/S5.5 HSS OUTRIGGERS PER PLAN BREAK ONE DIRECTION AT INTERSECTING OUTRIGGER, WELD ALL AROUND 1/4 1/4 1/4 1/4
