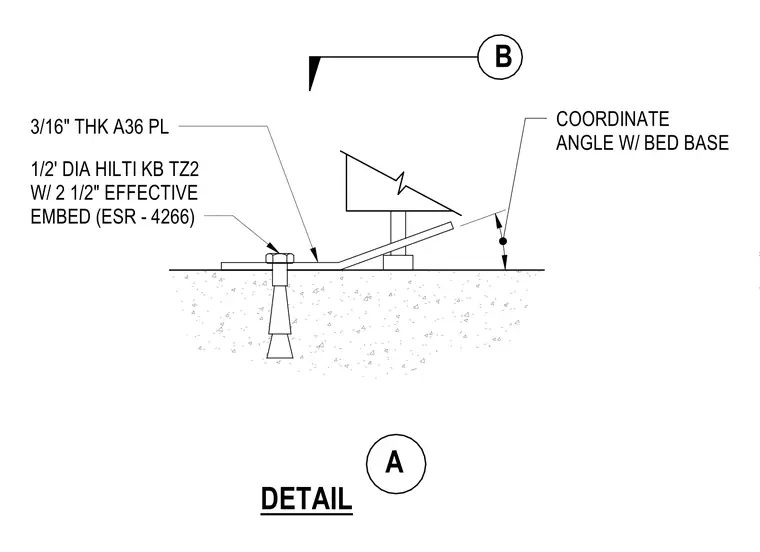

A three-sixteenths-inch-thick ASTM A36 steel plate is anchored to a concrete substrate using a one-half-inch-diameter Hilti KB-TZ2 expansion anchor with a two-and-one-half-inch effective embedment per ESR-4266. An angle member is positioned above and coordinated with the bed base. The plate transfers lateral loads directly into the concrete foundation through the mechanical anchor.
1/2' DIA HILTI KB TZ2 W/ 2 1/2" EFFECTIVE EMBED (ESR - 4266) 3/16" THK A36 PL COORDINATE ANGLE W/ BED BASE B DETAIL A 50.75"
