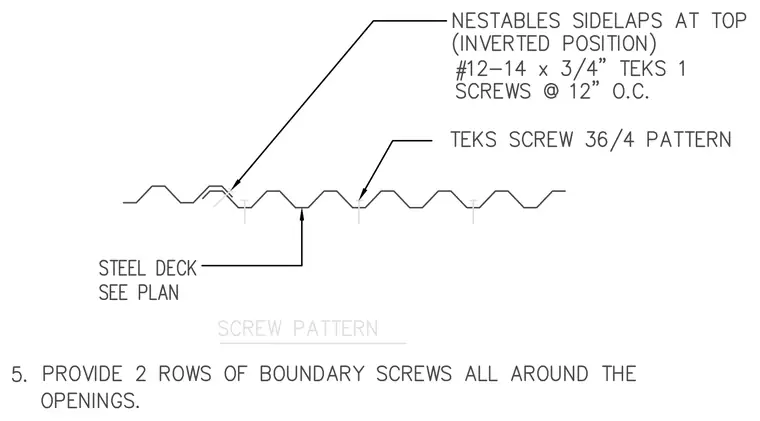

The steel deck is configured with nestables sidelaps at the top in an inverted position, secured by number 12-14 by 3/4 inch TEKS 1 screws spaced at 12 inches on center. An additional TEKS screw 36/4 pattern fastens the steel deck, which is sized per plan. Two rows of boundary screws are provided all around the openings.
