Structural · S-ZG9H5

Welded Beam to Column Connection with Shear Tab

Materials

weld

Elements

Bracing Connections / Plates

Connections

Braced Frame Connection Welded Connection Bolted Connection

About this detail

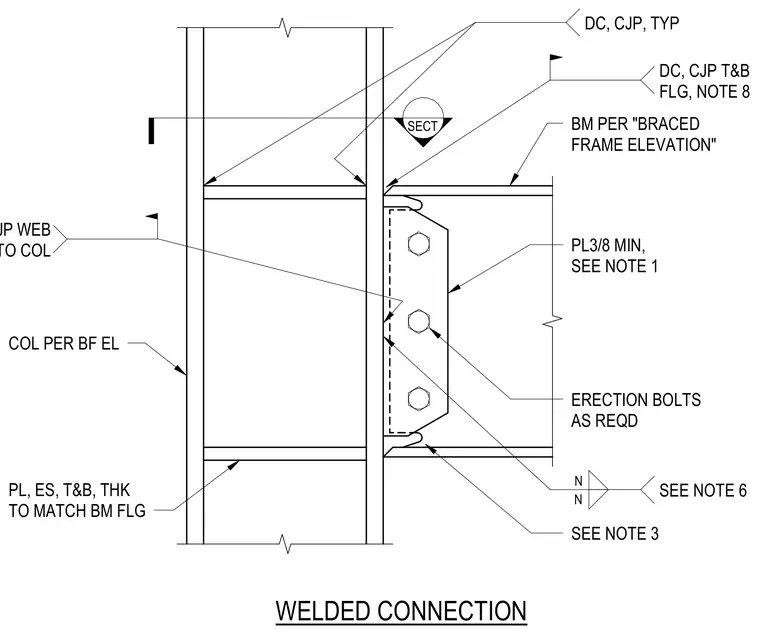

A steel framing connection joins a beam to a column specified per the braced frame elevation using complete joint penetration welds at the top and bottom flanges. A three-bolt shear tab of three-eighths inch minimum thickness connects the beam web to the column. Erection bolts are installed as required for temporary alignment. Complete joint penetration welds secure the web to the column plate, with plates added top and bottom matching the beam flange thickness.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
