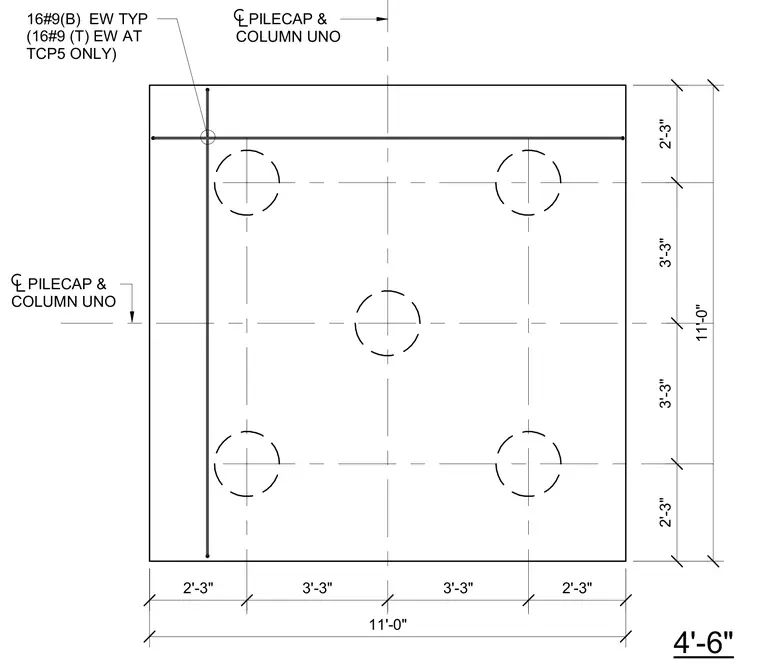

This structural plan detail shows an eleven-foot square concrete pile cap supported by five piles arranged with four corner piles and one center pile. The reinforcement consists of sixteen number nine reinforcing bars in each direction at the bottom typically, with additional top reinforcing bars at specific pile cap locations only. Overall dimensions and pile spacings are clearly dimensioned from the centerlines of the pile cap and column.
4'-6" PILECAP & COLUMN UNO 16#9(B) EW TYP (16#9 (T) EW AT TCP5 ONLY) PILECAP & COLUMN UNO 2'-3" 3'-3" 3'-3" 2'-3" 11'-0" 2'-3" 3'-3" 3'-3" 2'-3" 11'-0"
